Description

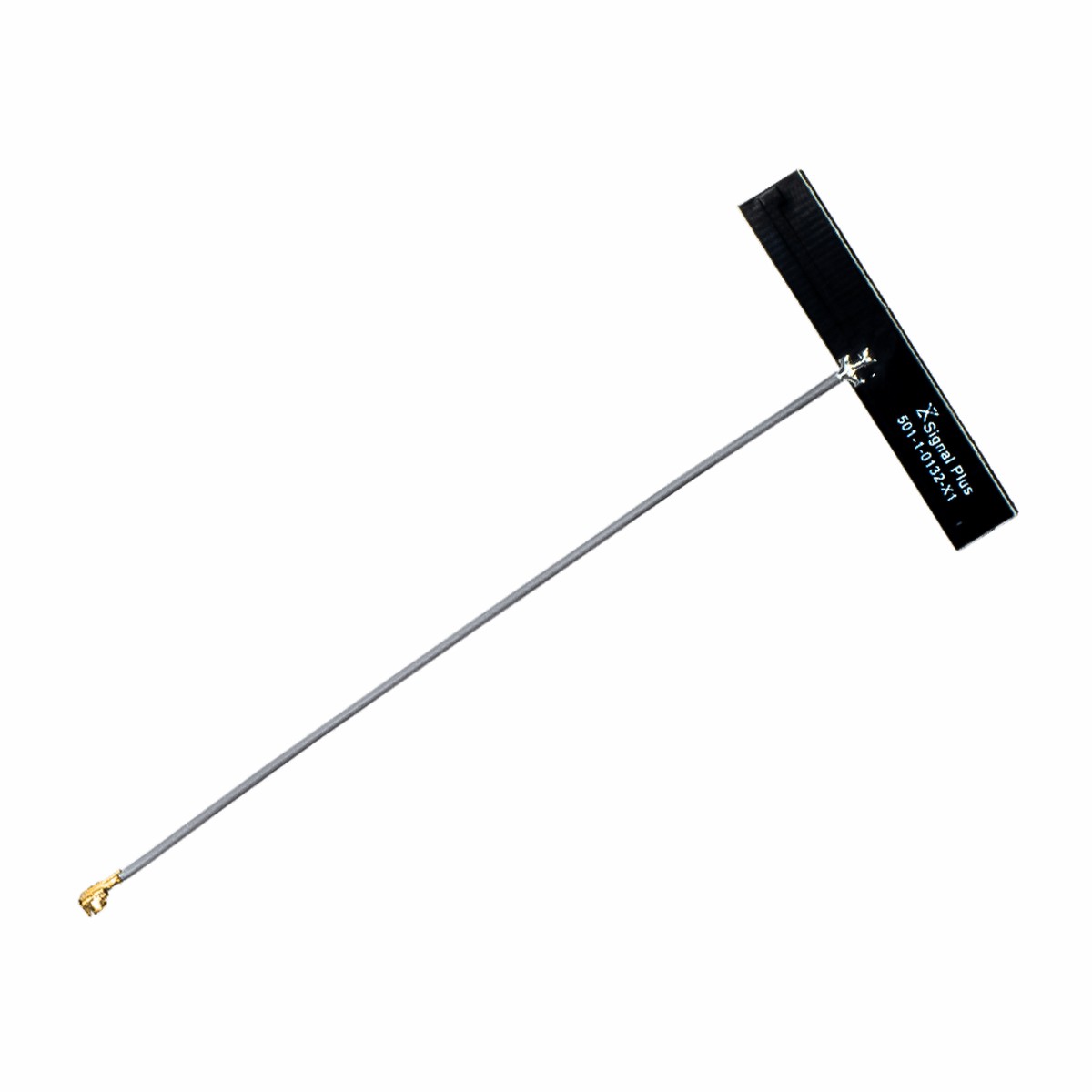

2.4GHz BLE PCB Antenna
WisBlock 2.4 GHz PIFA antenna offers a small footprint and superior gain characteristics which is very ideal for IoT node devices. Its size offers flexibility on enclosures without compromising performance with its Omni-directional characteristics.
Key Features
|
IPEX MHF1 |
IPEX MHF4Only for RAK11720 |
|
|---|---|---|
|
Frequency Range |
2400~2500 MHz |
2400~2500 MHz |
|
Peak gain |
3dBi |
3.12dBi |
|
VSWR |
2 |
2 |
|
Efficiency |
79.95% |
79.95% |
|
Impedance |
50 ohm |
50 ohm |
|
Connector Type |
U.FL |
U.FL |
|
Dimensions |
40 x 7 x 2.3mm |
40 x 7 x 1mm |
|
Cable length |
110mm |
100mm |
|
Operating temperature |
-30 C ~ +75 C |
-30 C ~ +75 C |
