Description
Description

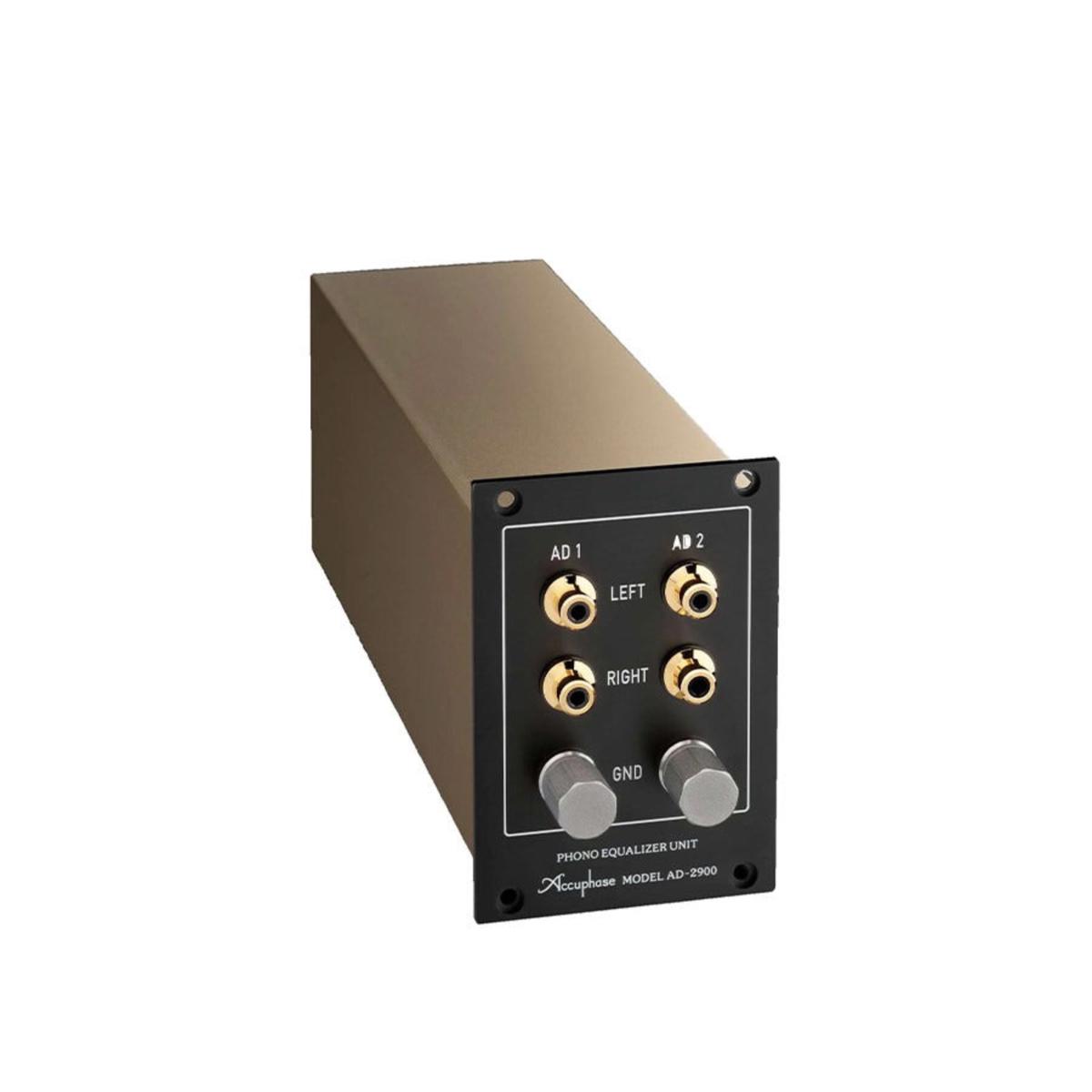

AD-2900 is the dedicated phono equalizer unit. Analog records can be reproduced with high quality by installing AD-2900 in a rear-panel slot. The AD-2900 features separate input circuitry for MC and MM cartridges to ensure optimum matching and realize outstanding S/N ratio. 2 sets of analog-player input jacks, the AD1 and AD2 are equipped, and their selections are switchable with the INPUT selector of pre-amplifiers.
Technical Specifications
| Category | Spec |
|---|---|
| Equalizer Units | Boards using glass cloth fluorocarbon resin with fully separated left/right channels |
| Input Circuit | Ideal MC/MM independent input circuit for high noise performance |
| Equalizer Type | Differential-style for high-precision RIAA characteristics |
| Input Terminals | Two terminals to connect up to two tone arms |
| Front Panel Functions | Operable directly from the front panel |
| Memory | Settings for each input terminal |
| Chassis | Robust aluminum case to shield against external noise |
| MC Gain | 64 / 70 dB (switchable) |
| MC Input Impedance | 10 / 30 / 100 / 200 / 300 (switchable) |
| MM Gain | 34 / 40 dB (switchable) |
| MM Input Impedance | 47 k (rated) |
| Amplifier Circuit | Differential amplifier with ultra-low noise bipolar transistors for MC cartridges |
