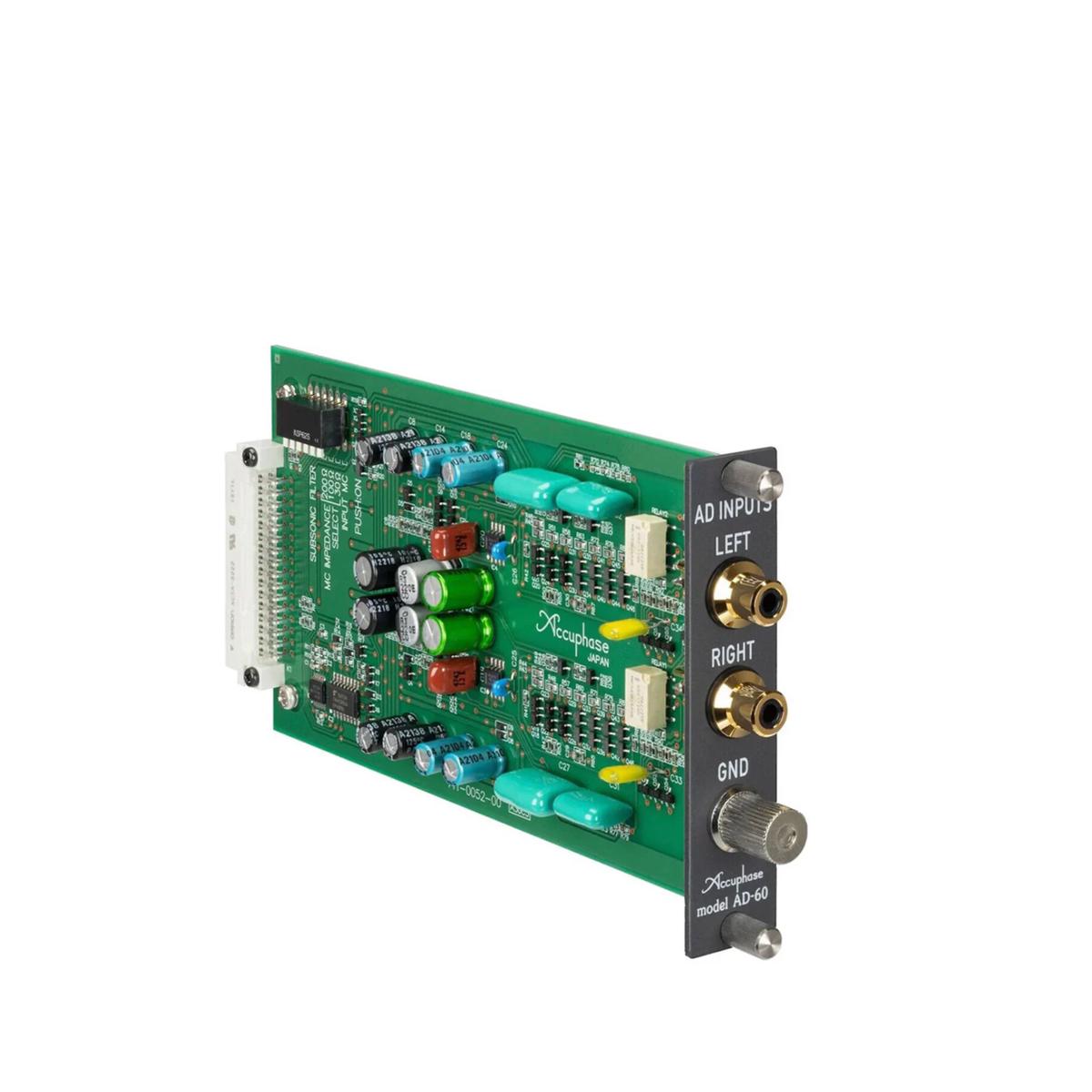

High-Performance Phono Equalizer Amplifier for Analog Record Playback.This precision-engineered phono equalizer amplifier is designed to deliver exceptional audio fidelity from vinyl records, whether using Moving Magnet (MM) or Moving Coil (MC) cartridges. It features convenient front-panel MC/MM switching, allowing users to easily match their cartridge type without the need to access rear controls or internal settings.
For more advanced configuration, internal DIP switches provide fine-tuned control over the MC input impedance with selectable values to suit a wide range of cartridges as well as activation of the subsonic filter, which effectively attenuates low-frequency rumble and unwanted vibrations below 25 Hz at a slope of 12 dB per octave. This combination of user accessibility and detailed customization makes the amplifier ideal for both audiophiles and professionals seeking uncompromised analog playback performance.
Technical Specifications
| Parameter | MC (Moving Coil) | MM (Moving Magnet) |
|---|---|---|
| Type | Moving Coil (MC) | Moving Magnet (MM) |
| Gain | 66 dB | 40 dB |
| Input Impedance | 30 / 100 / 200 / 300 ohms (selectable) | 47 kilohms |
| Subsonic Filter | – (shared setting) | – (shared setting) |
| Subsonic Filter Spec | 25 Hz, 12 dB/octave (applies to both MC/MM) | 25 Hz, 12 dB/octave |
