Description

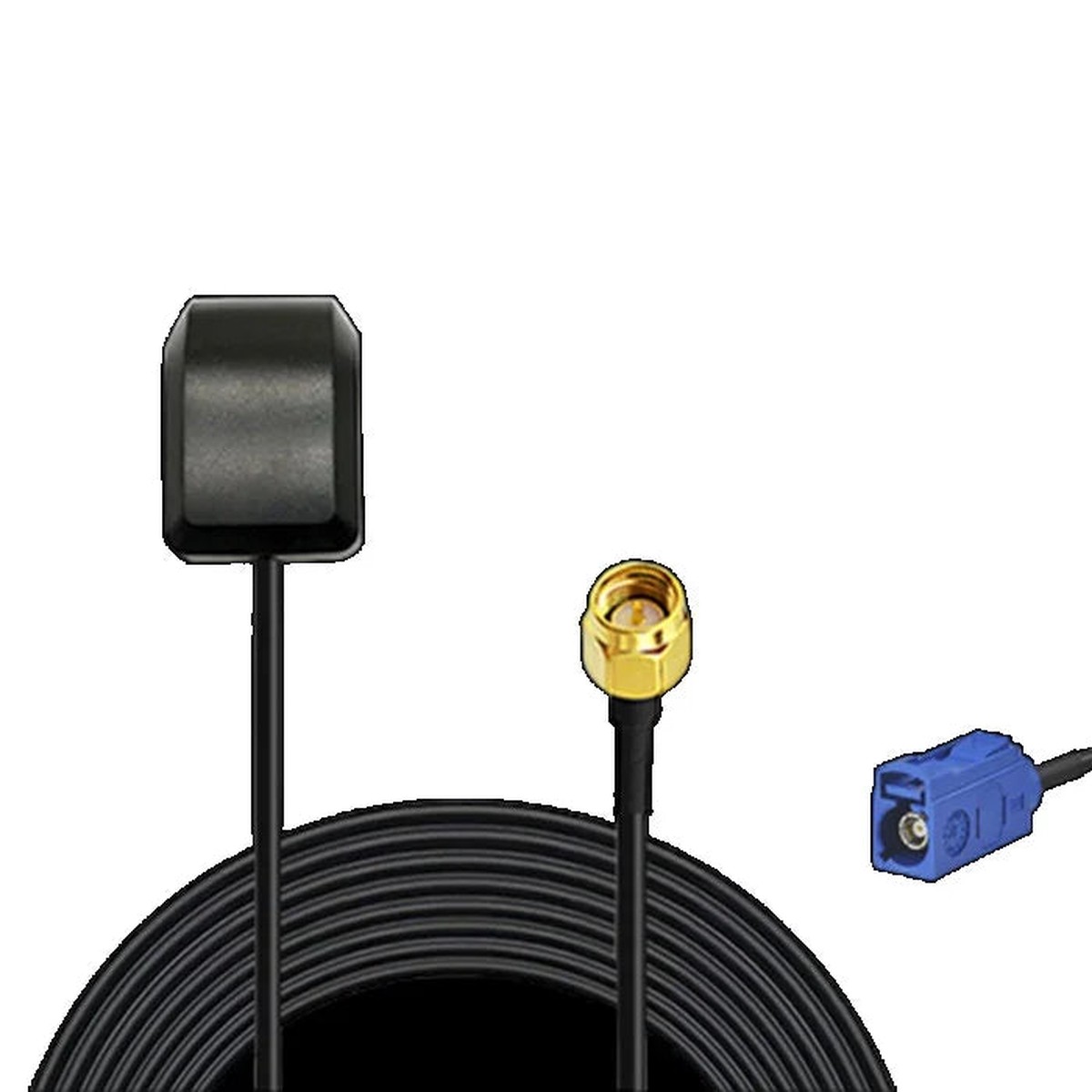

The Q48x38 Box GPS+GLONASS SMA-J is a professional dual-constellation GNSS antenna designed for high-precision positioning and navigation applications. This compact external active antenna delivers exceptional GPS/GLONASS signal reception with L2000 frequency support, making it ideal for demanding outdoor positioning systems and professional navigation equipment.
Features
- Dual-Constellation Support: Compatible with both GPS and GLONASS satellite systems for enhanced positioning accuracy and reliability in challenging environments.
- Active Antenna Design: Built-in low-noise amplifier (LNA) with superior signal reception capabilities for professional positioning applications.
- Weatherproof Box Construction: IP65-rated housing provides excellent protection against harsh environmental conditions, ensuring reliable outdoor performance.
- Standard SMA-J Connector: 50 impedance with SMA-J interface for seamless integration with GPS/GLONASS receivers and positioning equipment.
- Extended Temperature Range: Operating temperature from -40C to +85C ensures consistent performance in extreme weather conditions.
- High Gain Performance: 282dB gain provides excellent signal amplification for optimal positioning accuracy.
Specifications
- Product Model: Q48x38 Box GPS+GLONASS SMA-J
- Part Number: AH06.132
- Frequency Range: GPS L1 1575.42MHz + GLONASS L1 1602MHz
- Connector Type: SMA-J (50)
- Impedance: 50
- VSWR: 2.0
- Gain: 282dB
- Polarization: Right-Hand Circular Polarization (RHCP)
- Antenna Type: External Active Box Antenna
- Dimensions: 48 38 17 mm
- Weight: 50 g/pcs
- Operating Temperature: -40C to +85C
- Cable Length: 174cm or customizable
Applications
The Q48x38 Box GPS+GLONASS SMA-J is widely applicable in:
- Vehicle Navigation Systems: Automotive GPS navigation and fleet management solutions
- Professional Surveying: Land surveying and geographic information systems (GIS)
- Marine Applications: Maritime navigation and vessel tracking systems
- Aviation Equipment: Aircraft navigation and flight management systems
- Agricultural Machinery: GPS-guided tractors and precision farming equipment
- Emergency Services: Search and rescue positioning and emergency response systems
- Timing Applications: GNSS timing synchronization for telecommunications and network infrastructure
- Industrial IoT: Asset tracking and location-based monitoring systems
Shipping List
Each order includes:
- Q48x38 Box GPS+GLONASS SMA-J antenna units
- Comprehensive technical datasheet with detailed electrical and mechanical specifications
- Professional installation guide with mounting and connection instructions
- Performance test report with gain and VSWR measurements
- Quality assurance certificate with factory inspection results
- Compliance documentation (CE/FCC/RoHS certifications)
- 12-month manufacturer warranty with dedicated technical support
The Q48x38 Box GPS+GLONASS SMA-J antenna delivers professional-grade dual-constellation GNSS performance with robust weatherproof construction, providing engineers and system integrators with a reliable solution for demanding GPS/GLONASS positioning applications. Its compact design, high gain amplification, and industrial reliability make it the ideal choice for next-generation navigation and positioning systems.
