Description

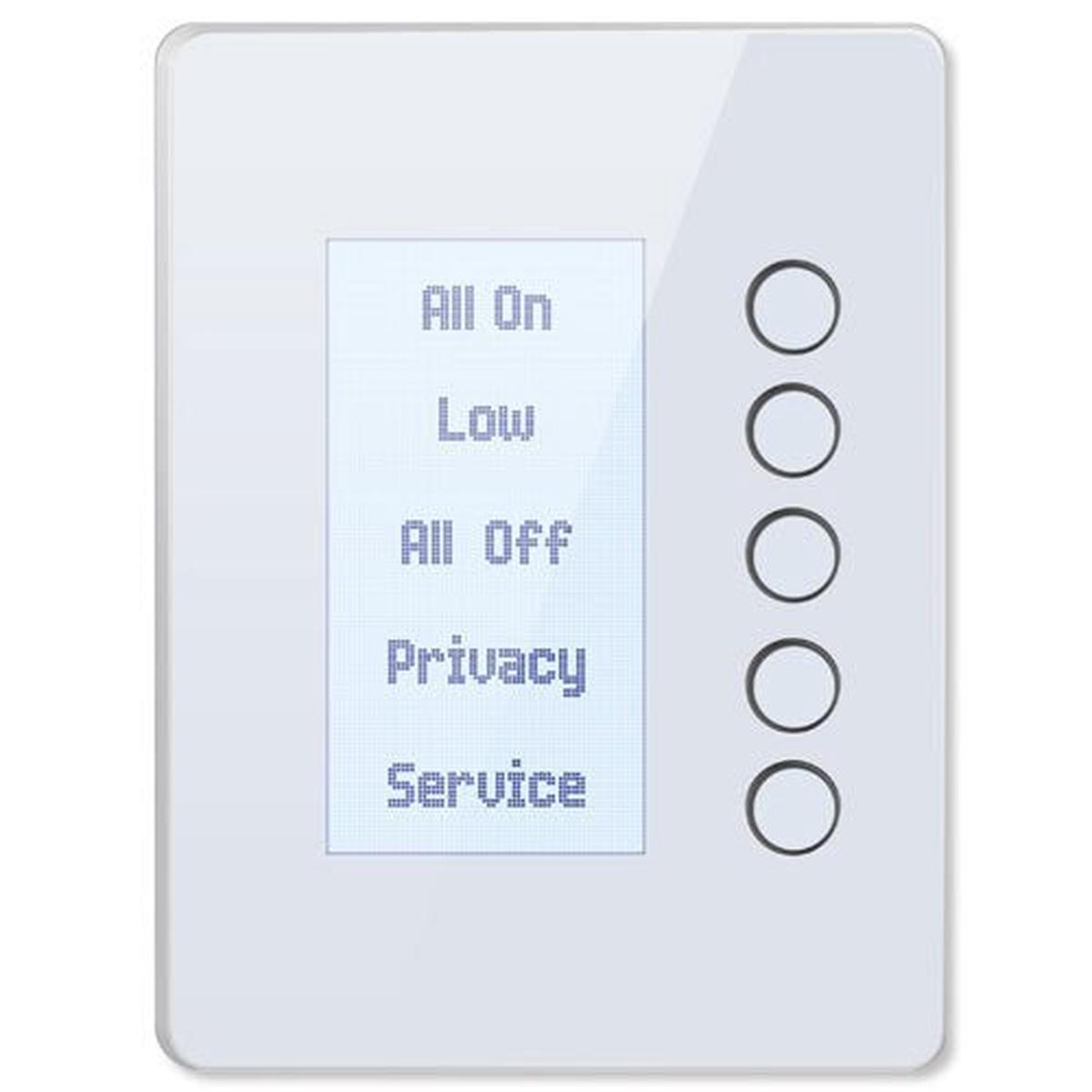

The Evolve LCD-1 Single Gang RF Scene Controller is a programmable, 5 button device that provides command and control of up to 5 RF network scenes and is a component of the Evolve Guest Controls (EGC) lighting control system. This Wall Mounted Transmitter is designed to work with other Evolve enabled devices. Evolve nodes of other types can be included in the network and will also act as repeaters to increase the range of the network.
Specifications:
Power Requirements: 12V DC or 120V or 240V AC with included power supply
Fully Protected: Over voltage, Over power, Over temperature & Short circuit protection
Safety Requirements: Meets UL/CSA & EN product safety
Environmental: Green energy efficient design
Regulations: Meets US & In’tl Energy Star
CEC Requirements: Meets California CEC Requirements
No Load Consumption: <500 mW
Compliances: RoHS Compliant
EMI: Meet EN 55014 FCC Part 15 Class B
EMS: Meet EN 55024
Safety: Agency UL1310 recognized UL File: E310433
Dimensions: 2.9″ W x 4.6″ H x .05″ D
Weight: 1lb
