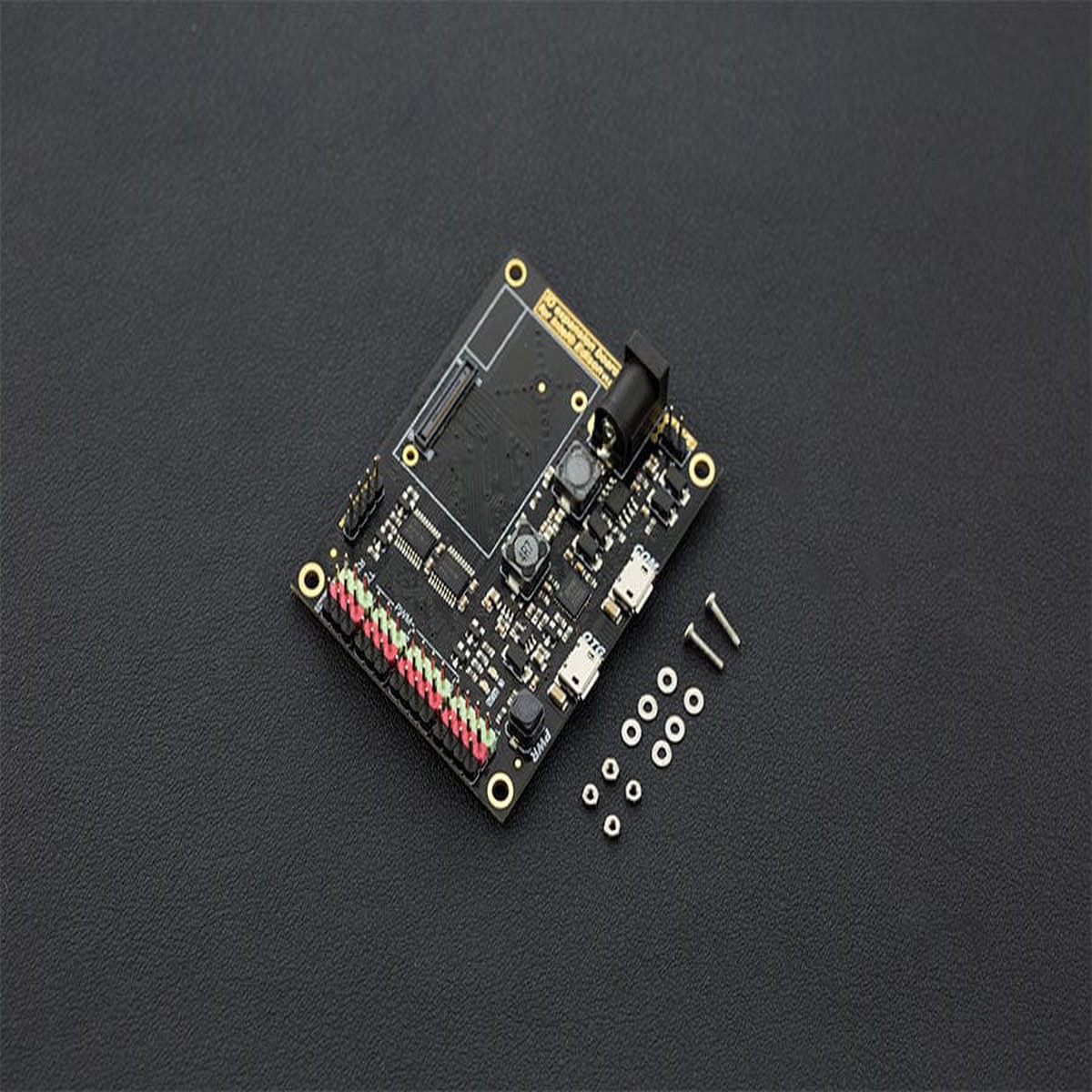

Gravity IO Expansion Shield for Intel Edison (without Edison) Discontinued

Original price was: $8.48.Current price is: $6.78.

SKU: UWGM439801 Category: Development Boards

Description
Reviews (0)

Description

IO Expansion Shield is one of the market favourites. Fast robotics prototyping made affordable and simple thanks to this design. Soldering and wiring often becomes a problem when a bridged connection happens and components break sometimes, increasing time and cost. The IO Expansion Shield for Edison extends Edison\’s powerful scope into sensing the physical world, and prepares it ready for interaction through wireless communication. This IO expansion board for Edison is compatible with Arduino open source platform and Linux, and supports Java and C development environment. It can also be used as a standalone communication platform for software like flash, processing, Max/MSP and VVVV. The IO Expansion Shield for Edison adopts DFRobot\’s classic color code for sensors/actuators input/output. The 3 pin format for Signal, Voltage and Ground is extremely intuitive, especially if used altogether with our increasingly large range of modules, sensors and devices that just fit. Specification Operating Voltage: 5V Output Voltage: 5V Input Voltage(limits): 6-20V Digital I/O pins: 14 (D0-D13) PWM Output interface: 4 (Digital pins D3, D5, D6 and D9) DC Current per I/O Pin: 10mA Size: 70x55x15mm (2.76×2.17×0.59\”) Weight: 30g Support USB power and external power supply switch Support 1 x I2C interface Support Broadcom 43340 802.11 a/b/g/n dual band (2.4G and 5GHz) WiFi Support Bluetooth 4.0 Documents Product Wiki Schematic Intel Edison Getting Started Tutorial Edison Related Software Download Edison Firmware Update Tutorial Build your Own Edison System Image Tutorial Intel Edison Introduction Edison Module Introduction Webpage Edison Development Forum Shipping List IO Expansion Shield for Edison (without Edison) x1
