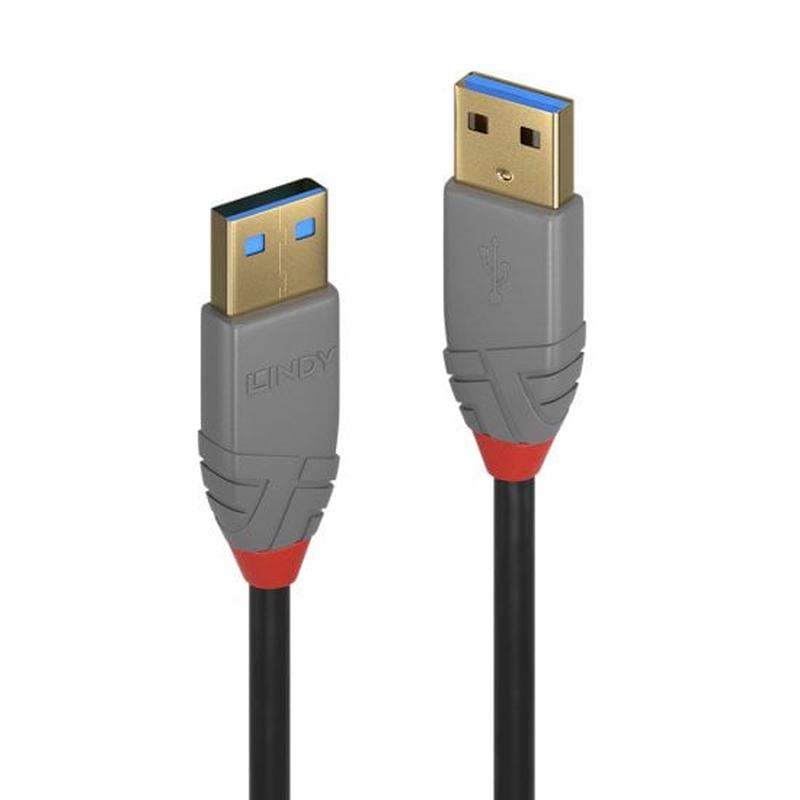

High-Speed 0.5m USB 3.2 Type A to A Cable
The Anthra Line USB 3.2 Type A to A cables from Lindy’s Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.Anthra Line USB 3.2 Type A to A cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.Information on USB generationsWe have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
-
Connector A USB 3.2 Type A Male Connector B USB 3.2 Type A Male Housing Material PVC Connector Plating Gold Plated Pin Construction Copper Pin Plating Gold Plated Dimensions USB 15.5x35x7.8mm (0.61×1.38×0.31in) Length 0.5m (1.64ft) Standard USB 3.2 Gen 1 Colour Black Type Round Jacket Diameter 5.5mm (0.22in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge Power 24AWG Conductor Gauge Data 28AWG Shielding Aluminium Braid 85% Supported Bandwidth 5Gbps Nominal Attenuation 0.5-5m: 0.5MHz-7.5GHz Minimum Bend Radius 48mm (1.89in) Operating Temp. 0C – 60C (32F – 140F) Storage Temp. 0C – 60C (32F – 140F) Packaging Type Polybag Warranty 10 Years Certifications RoHS, REACH, UL Product No. 36750 EAN 4002888367509 Other Lengths 0.5m, 1m, 2m -
