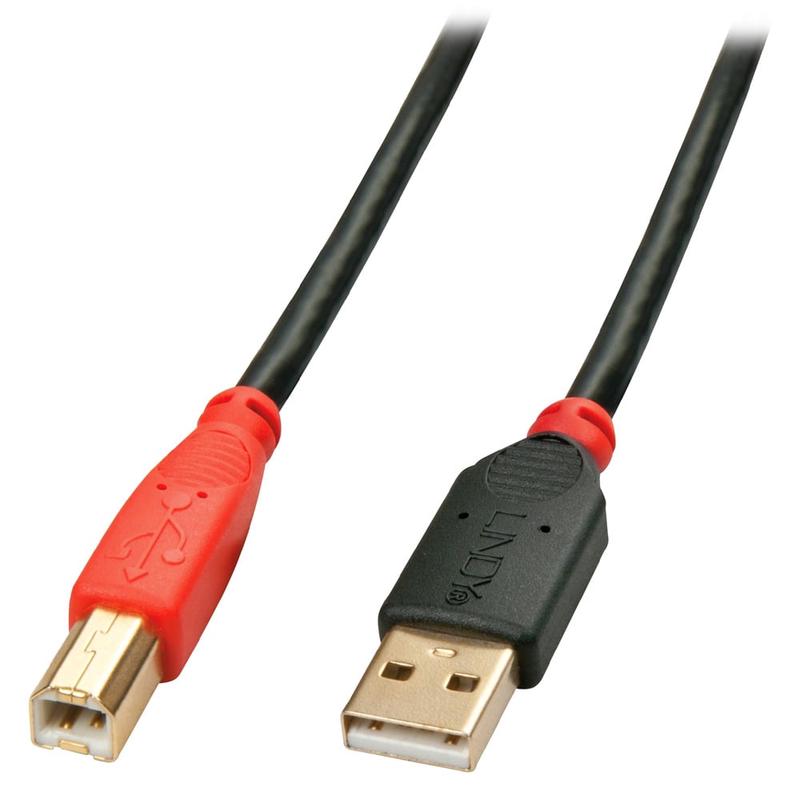

Reliable 10m USB 2.0 Type A to B Active Extension Cable
The Lindy USB 2.0 Active Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps.
With USB A male and USB B male connectors this product allows Type B devices like printers to be connected directly at longer distances and ensures flexible positioning.
The Lindy USB 2.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable’s unique and slim design allows easy installation due to the active electronics that are housed in a small cable mould – an advantage over other active USB leads which use bulky connectors.
It is recommended that this extender is used with low power or self powered USB peripherals and not high power consuming devices.
-
Connector A USB Type A Male Connector B USB Type B Male Power – Housing Material Plastic Connector Plating Front: Gold / Back: Nickel Pin Construction Brass Pin Plating Gold Flash USB A Male Dimensions 14x41x6mm (0.55×1.61×0.24in) USB B Male Dimensions 10x41x10mm (0.39×1.61×0.39in) Length 10m (32.8ft) Standard USB 2.0 Colour Black Type Round Jacket Diameter 5mm +/-0.15mm (0.2in +/-0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 26/20AWG Shielding AL Mylar and braid Supported Bandwidth 480 Mbps Included Hubs 2x USB 2.0 Nominal Attenuation 0.064MHz -0.08dB 400MHz -5.8dB Minimum Bend Radius 26mm (1.02in) Operating Temp 0C – 50C (32F – 122F) Storage Temp -20C – 60C (-4F – 140F) Transmission Medium Twisted Pair Transmission Tech USB 2.0 Packaging Type Polybag Packaging Dimensions 220x235x20mm (8.66×9.25×0.79in) Net Weight 0.372kg (0.82lb) Gross Weight 0.382kg (0.84lb) Warranty 2 Years Certified CE, UKCA, FCC, RoHS & REACH Package Contents 10m USB 2.0 Active Cable Purchasing No. 42761 EAN 4002888427616 Other Length 42762 – 15m (49.21ft) -
