Lindy 10m USB 3.0 Active Extension | 43156

Description

• Description
• Specifications
• Downloads

• High-Speed 10m USB 3.0 Extension for AV & IT Use

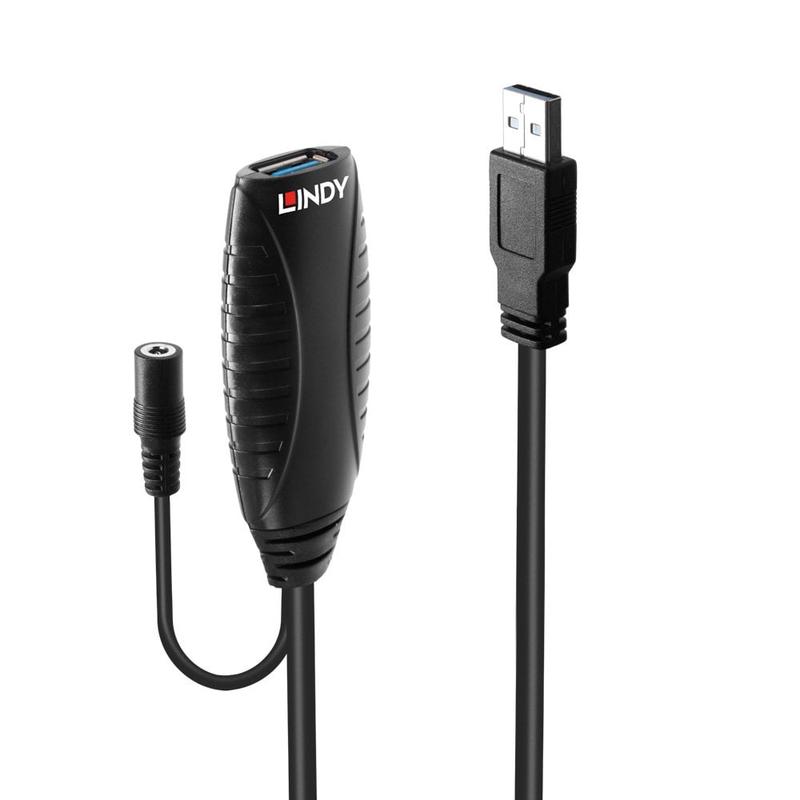

  The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.

  With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.

  The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

  The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

  Information about USB 3.0, 3.1 & 3.2

  USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
  USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
  USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

• Connector A	USB Type A Male	Connector B	USB Type A Female
  Power	3.5/1.35mm DC Connector	Housing Material	Plastic
  Connector Plating	Nickel	Pin Construction	Copper
  Pin Plating	Golden	Dimensions USB A Male	16x37x9.8mm (0.63×1.46×0.39in)
  Dimensions USB A Female	32x85x10mm (1.26×3.35×0.39in)	Length	10m (32.81ft)
  Standard	USB 3.1 Gen 1 / 3.0	Colour	Black
  Type	Round	Jacket Diameter	6mm (0.24in)
  Jacket Material	PVC	Conductor Material	Tinned Copper
  Conductor Gauge	28/28/22AWG	Shielding	85% Aluminium magnesium braid
  Supported Bandwidth	5 Gbps	Included Hubs	2x USB 3.0
  Nominal Attenuation	100MHz -1.5dB; 1.25GHz -5.0dB; 2.5GHz -7.5dB; 7.5GHz -25dB	Minimum Bend Radius	60mm (2.36in)
  Operating Temperature	0C – 55C (32F – 131F)	Storage Temperature	-20C – 70C (-4F – 185F)
  Transmission Medium	Twisted Pair	Transmission Technology	USB 3.1 Gen 1 / 3.0
  Packaging Type	Polybag	Packaging Dimensions	324x335mm (12.76×13.19in)
  Net Weight	0.515kg (1.14lb)	Gross Weight	0.6kg (1.32lb)
  Warranty	2 Years	Certified	CE, UKCA, FCC, RoHS & REACH
  Packaging Contents	USB 3.0 Active Extension 10m	No.	43156
  EAN	4002888431569	Available Lengths	43155 – 5m; 43099 – 15m
