High-Speed USB 3.2 Gen 1 Cable with Active Boost

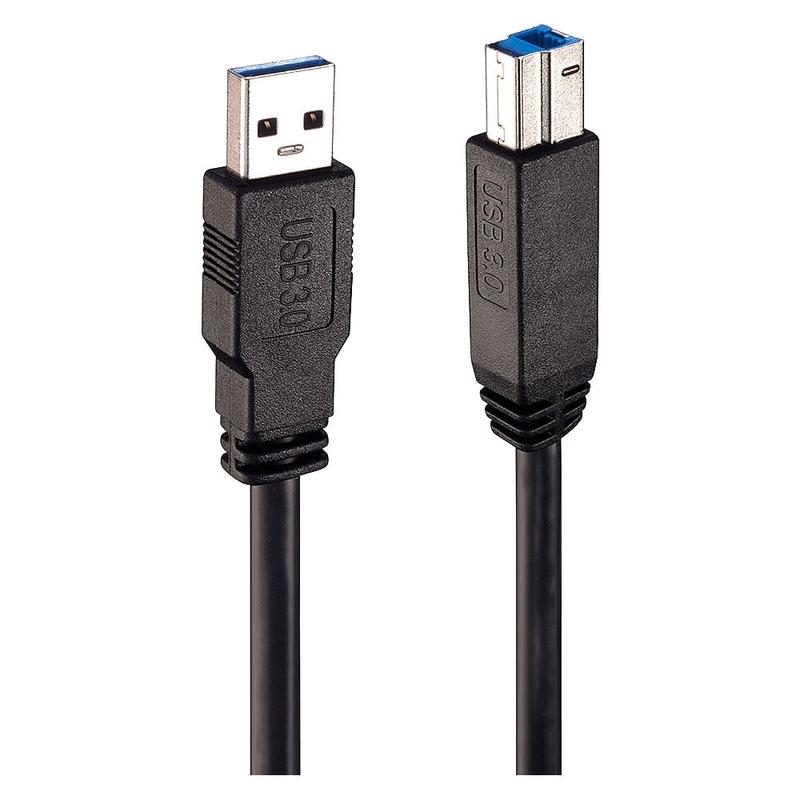

The Lindy USB 3.2 Gen 1 Type A to B Active Cable provides a dependable solution for connecting a computer to a USB-B device, such as a printer or scanner, over extended distances. With a 10m reach and built-in active electronics, it supports high-speed data transfers of up to 5Gbps, ensuring performance without compromise.
This cable features USB-A and USB-B male connectors, making it easy to connect Type B devices directly to a computer and allowing for greater flexibility in device placement. Its compatible with any USB Type A-equipped computer and offers straightforward plug-and-play installation for a seamless setup.
For optimal performance, this active cable is recommended for use with low-power or self-powered USB peripherals. It may not be suitable for high-power devices unless they have an independent power source.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps. -
Connector A USB Type A Male Connector B USB Type B Male Power – Housing Material Plastic Connector Plating Nickel Pin Construction Copper Pin Plating Nickel Dimensions USB A Male 16x49x9mm (0.63×3.7×0.35in) Dimensions USB B Male 10x52x13mm (0.39×2.05×0.51in) Repeater (2x) 35x100x15mm (1.26×3.94×0.59in) Length 10m (32.8ft) Standard USB 3.2 Gen 1 / 3.0 Colour Black Type Round Jacket Diameter 7mm +/- 0.15mm (0.28in +/- 0.01in) Jacket Material PVC Conductor Material Copper Conductor Gauge 28/28/22AWG Shielding 85% Aluminium Supported Bandwidth 5 Gbps Included Hubs 2x USB 3.0 Nominal Attenuation 100 MHz, -1.5 dB; 1.25 GHz, -5.0 dB; 2.5 GHz, -7.5 dB; 7.5 GHz, -25 dB Minimum Bend Radius 60mm (2.36in) Operating Temperature 0C – 55C (32F – 131F) Storage Temperature -20C – 85C (-4F – 185F) Transmission Medium Twisted Pair Transmission Technology USB 3.0 Packaging Type Polybag Packaging Dimensions 300x300x80mm (11.81×11.81×3.15in) Net Weight 0.5kg (1.1lb) Gross Weight 0.530kg (1.17lb) Warranty 2 Years Certified CE, UKCA, FCC, RoHS & REACH Package Contents USB 3.0 Active Cable 10m, Lindy Manual No. 43098 EAN 4002888430982 -
