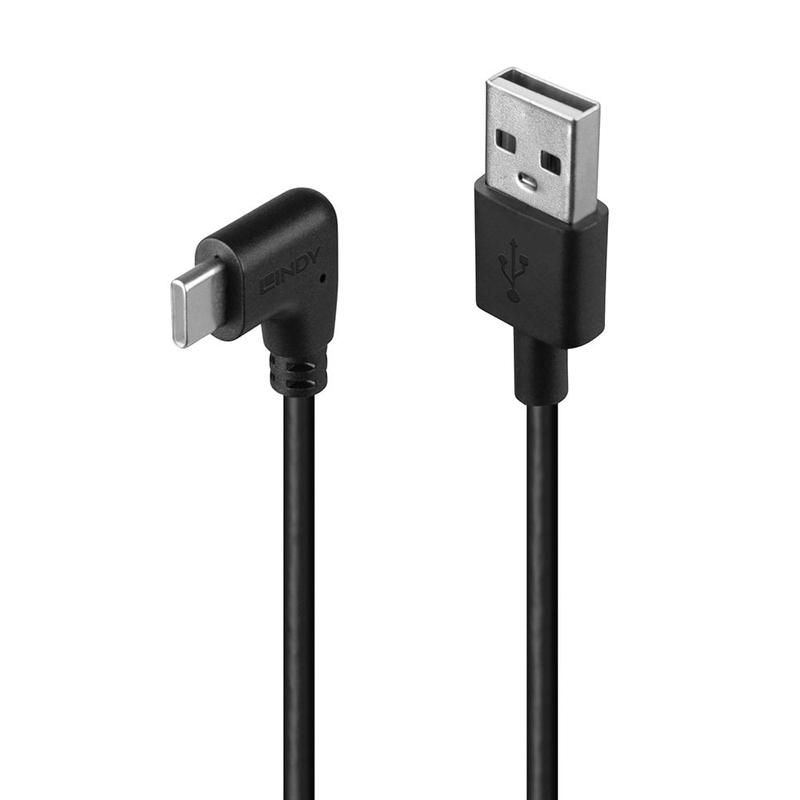

Professional USB-A to C Right Angle Cable 1m
LINDY USB 2.0 Type A to C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 2.0 Type A to C, 90 Right Angle cables are available in the following lengths: 0.5m, 1m.
-
Feature Description Connector A USB 2.0 Type A Male Connector B USB 2.0 Type C Male 90 Right Angle Housing Material PVC Connector Plating Nickel Pin Construction Copper Pin Plating Gold Dimensions (USB A) 7.5x27x15mm (0.3×1.06×0.59in) Dimensions (USB C) 7x24x6.8mm (0.28×0.94×0.27in) Length 1m (3.28ft) Standard USB 2.0 Max. Power 15W Colour Black Type Round Jacket Diameter 3.8mm (0.15in) Jacket Material PVC Conductor Material Copper Conductor Gauge (Power) 24 AWG Conductor Gauge (Data) 28 AWG Shielding Aluminium Foil 110% Supported Bandwidth 480Mbps Nominal Attenuation 0.5Mhz-400Mhz < 5.8db Minimum Bend Radius 38mm (1.5in) Operating Temperature 0C – 40C (32F – 104F) Storage Temperature 0C – 70C (32F – 158F) Packaging Type Polybag Warranty 10 Years Product Compliance RoHS, REACH, California Proposition 65 Product Number 32001 EAN 4002888320016 Other Lengths 32000 – 0.5m (1.64ft), 32001 – 1m (3.28ft) -
