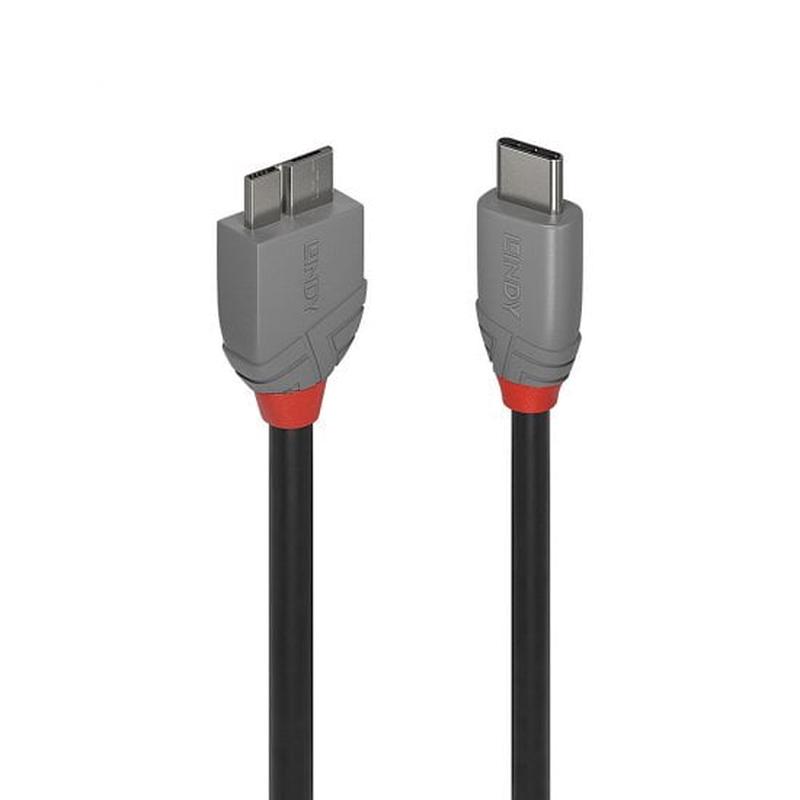

1m USB 3.2 Type C to Micro-B Cable by Lindy
The Anthra Line USB 3.2 Type C to Micro-B cables from Lindy’s Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiationAnthra Line USB 3.2 Type C to Micro-B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.Information about USB generationsWe have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
-
Connector A USB 3.2 Type C Male Connector B USB 3.2 Type Micro-B Male Housing Material PVC Connector Plating Nickel Pin Construction USB C High conductivity copper Pin Construction Micro-B Brass Pin Plating Gold Dimensions USB C 10.8x32x7.8mm (0.43×1.26×0.31in) Dimensions Micro-B 15.8×31.8×7.8mm (0.62×1.25×0.31in) Length 1m (3.28ft) Standard USB 3.2 Gen 1 Colour Black Type Round Jacket Diameter 4.3mm (0.17in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge Power 22AWG Conductor Gauge Data 30AWG Shielding Copper Braid 82% Shielding in Head Shell Copper foil Supported Bandwidth 5Gbps Nominal Attenuation 100-2500MHz < 20dB Minimum Bend Radius 25mm (0.98in) Operating Temperature 0C – 40C (32F – 104F) Storage Temperature 0C – 70C (32F – 158F) Packaging Type Polybag Warranty (Years) 10 Certifications RoHS, REACH, California Proposition, UL No. 36621 EAN 4002888366212 Other Lengths 36620 – 0.5m (1.64ft), 36621 – 1m (3.28ft), 36622 – 2m (6.56ft), 36623 – 3m (9.84ft) -
