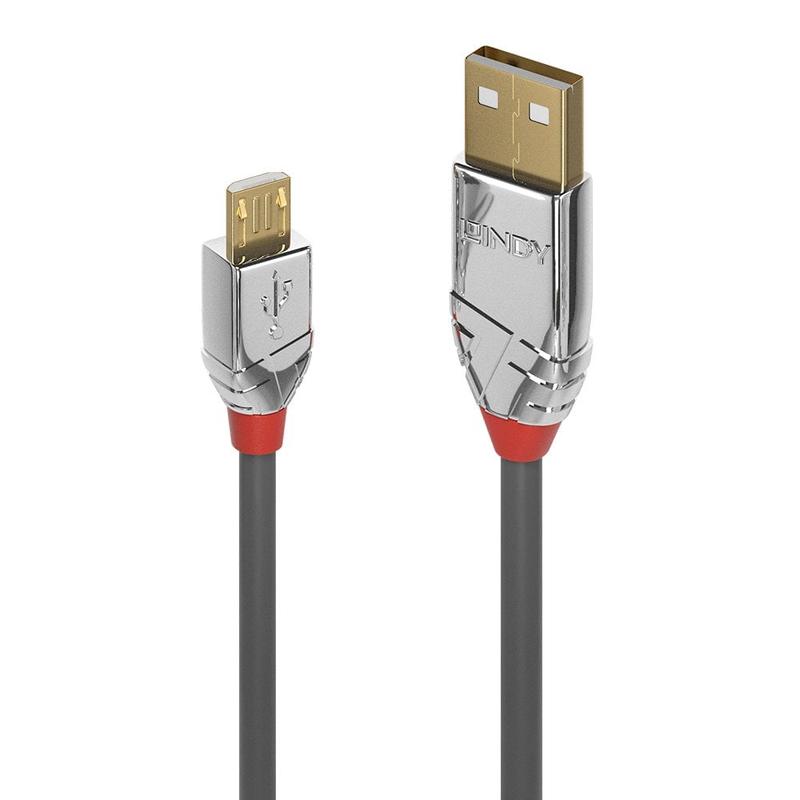

Lindy 2m USB 2.0 Type A to Micro-B Cable, Cromo Line | 36652

Description

• Description
• Specifications
• Downloads

• High-Performance Grey USB 2.0 A to Micro-B Cable, 2m

  From the Lines cable connectivity concept developed by Lindy, Cromo Line USB 2.0 Type A to Micro-B cables are high performance, designer connections that combine premium construction with striking connector architecture.

  Cromo Line USB 2.0 cables feature double shielded construction with tinned copper conductors for premium performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

  Cromo Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.5m, 1m, 2m, 3m and 5m.

• Connector A	USB 2.0 Type A Male	Connector B	USB 2.0 Type Micro-B Male
  Housing Material	Chrome Plated, ABS	Connector Plating	Gold 1m
  Pin Construction	Phosphor Bronze	Pin Plating	Gold 3m
  Dimensions A	15.5x35x7.8mm (0.61×1.38×0.31in)	Dimensions Micro-B	10x24x7.5mm (0.39×0.95×0.30in)
  Length	2m (6.56ft)	Standard	USB 2.0
  Colour	Grey	Type	Round
  Jacket Diameter	4.0mm (0.16in)	Jacket Material	PVC
  Conductor Material	Tinned Copper	Conductor Gauge	24/28AWG
  Shielding	Copper Braid 70%	Supported Bandwidth	480Mbps
  Maximum Resolution	–	Nominal Attenuation	0.5-400MHz < 5.8db
  Minimum Bend Radius	55mm (2.2in)	Operating Temp	-20C – 80C (-4F – 176F)
  Storage Temp	-25C – 85C (-13F – 185F)	ATC Approved	–
  Packaging Type	Polybag	Warranty (Years)	10
  Certificated	RoHS, REACH, UL	No.	36652
  EAN	4002888366526	Available Lengths	0.5m, 1m, 2m, 3m, 5m
