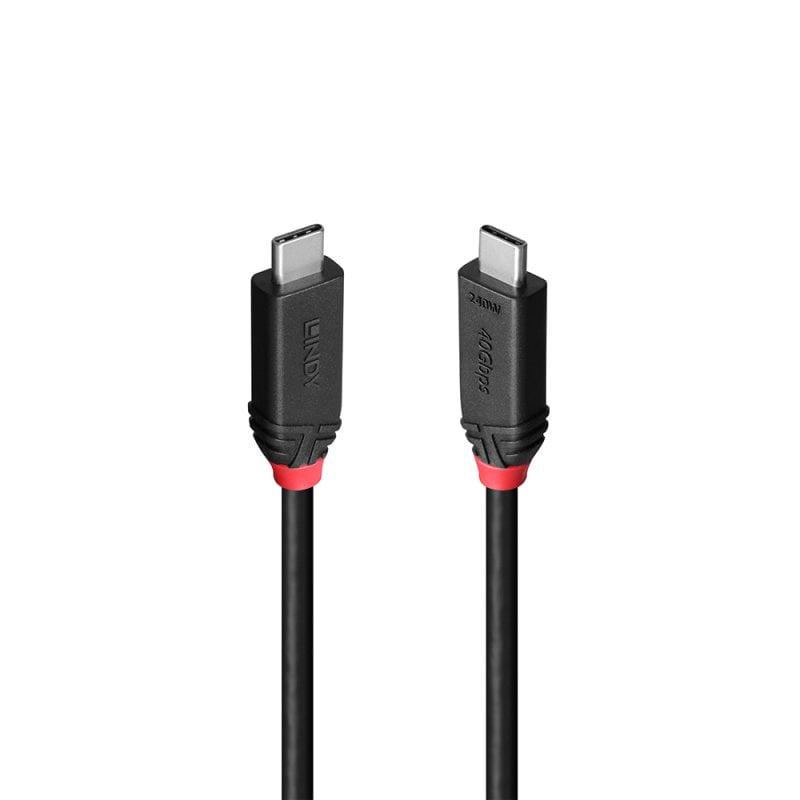

High-Speed USB4 240W Type-C to C Cable 2m
The Black Line USB4 Type C to C cables from Lindy’s Cable Lines concept are entry level connection solutions, perfect for home and small office use.
Black Line USB4 Type C to C cables feature triple shielded construction with copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
-
Connector A USB Type 4 C Male Connector B USB Type 4 C Male Housing Material PVC Shielding in Head Shell – Connector Plating Nickel Pin Construction Copper Pin Plating Gold Dimensions (WxDxH) 34.8×12.7×7.4mm (1.37×0.5×0.29in) Length 2m (6.56ft) Standard USB4 Gen 3×2 Power Delivery PD 3.1 Max. Power 240W (48V 5A EPR), 100W (20V 5A SPR) Colour Black Type Round Jacket Diameter 4.8mm (0.19in) Jacket Material PVC Conductor Material Copper Conductor Gauge Power 24AWG Conductor Gauge Data 32AWG Shielding Aluminium Foil + 60% Braiding Supported Bandwidth 40Gbps Maximum Resolution 3840×2160@60Hz, 7680×4320@60Hz Nominal Attenuation -12.2dB@5G, -18.3dB@10G Minimum Bend Radius 20mm (0.79in) Operating Temperature 0C – 40C (32F – 104F) Storage Temperature -10C – 60C (14F – 140F) Packaging Type Polybag Warranty (Years) 2 Product Compliance RoHS, REACH, California Proposition 65 Product No. / EAN 37002 / 4002888370028
