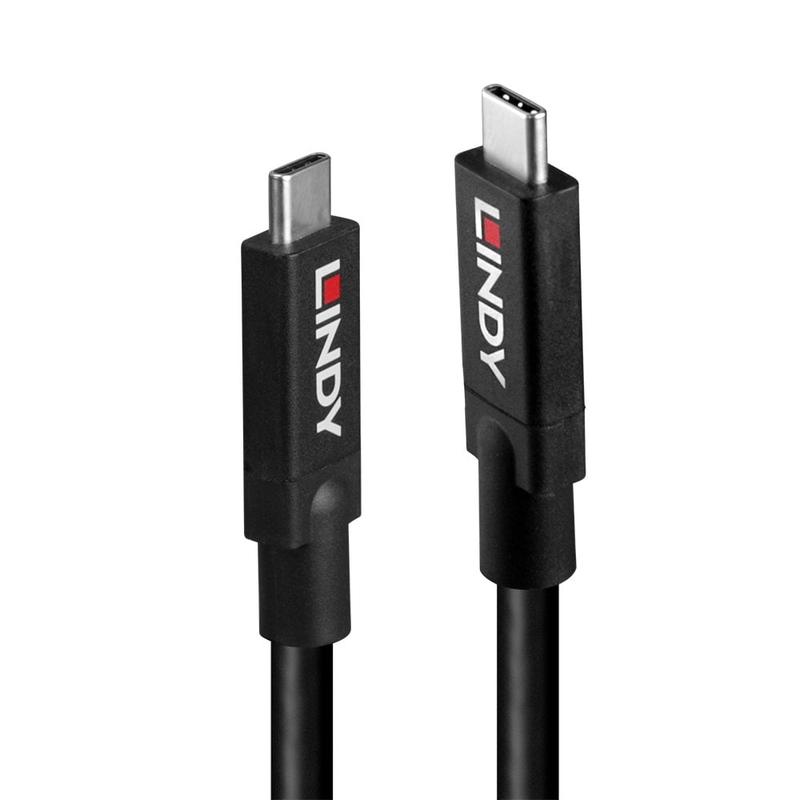

Lindy 5m USB 3.2 10Gbps C/C Active Cable | 43308

Description

• Description
• Specifications
• Downloads

• 5m USB-C to USB-C Active Cable 10Gbps Speed


  Power. Precision. Distance.

  High-Speed USB-C at 5 metres.
  The Lindy 5m USB 3.2 Gen 2 Active Cable is a long-distance, high-performance USB-C cable for professional data, video, and power applications. With integrated active electronics, it supports USB 3.2 Gen 2 data rates up to 10Gbps, DisplayPort 1.4 Alternate Mode for video up to 8K, and USB Power Delivery up to 100W all in a single plug & play connection. Designed for demanding AV and IT environments, this is the ideal solution for installations where longer USB-C cable runs are required without compromising performance.

  AT A GLANCE

  5m USB-C Active Cable
  High performance connection over extended distances.

  USB 3.2 Gen 2, 10Gbps
  Fast, stable transfer for modern peripherals and storage.

  DP 1.4 Alt Mode support
  High performance video resolutions up to 8K@60Hz.

  100W USB Power Delivery
  Delivers charging power directly through the cable.

  Plug & Play
  No drivers or software required simple to deploy and operate.

  Active Electronics
  Maintains data and video integrity at long distances.

  INSTALLATION EXAMPLE

  APPLICATIONS
  LFDs in AV Installations
  Establish reliable, long-distance connections between laptops and large format displays in control suites or event setups.

  Modern Workstations
  Simplify cable clutter by combining power, data, and video in one 5m USB-C solution.

  Digital Signage Setups
  Deliver high-performance USB and video to displays in retail or public venues without the need for extenders.

  Flexible Hot-Desking
  Provide extended reach across expansive desk layouts in hybrid offices and co-working spaces.

  Education & Training
  Enable plug-and-play setups for classrooms or training rooms where distance to devices varies.

  Meeting & Presentation Rooms
  Seamlessly connect centralised control devices to displays and peripherals across the room.

  THE REACH OF AN EXTENDER. THE SIMPLICITY OF A CABLE.
  Where standard USB-C cables fall short, the Lindy 5m USB 3.2 Gen 2 Active Cable delivers. With high-speed data, crisp video, and full 100W power all built into one smart, long-reach cable its the reliable choice for professional and AV environments.

• Feature	Description
  Connector A	USB Type C Male
  Connector B	USB Type C Male
  Power	PD 5A/20V (100W)
  Housing Material	TPE, PP
  Connector Plating	Nickel plated
  Pin Construction	Copper
  Pin Plating	Gold
  Dimensions	41×12.4×8.8mm (1.61×0.49×0.35in) each
  Length	5m (16.4ft)
  Standard	USB 3.2/3.1 Gen 2
  Colour	Black
  Type	Round
  Jacket Diameter	5.3mm (0.21in)
  Jacket Material	TPE
  Conductor Material	Tinned Copper
  Conductor Gauge	29AWG+32AWG+22AWG
  Shielding	85% Tinned Copper
  Supported Bandwidth	10Gbps
  Maximum Resolution	UHD 8K 7680×4320@60Hz, 4K 4096×2160@120Hz
  Nominal Attenuation	-15.6Db@5GHz
  Minimum Bend Radius	106mm (4.17in)
  Operating Temperature	0C to 40C (32F – 104F)
  Storage Temperature	-10C to 60C (14F – 140F)
  Transmission Medium	Twisted Pair
  Transmission Technology	USB 3.2 / 3.1 Gen 2
  Packaging Type	Polybag
  Packaging Dimensions	236x255mm (9.29×10.04in)
  Net Weight	0.21kg (0.46lb)
  Gross Weight	0.23kg (0.49lb)
  Warranty	2 Years
  Certifications	CE, FCC, RoHS & REACH, California Proposition 65
  Packaging Contents	USB 3.2 Gen 2 C/C Active Cable 5m, Lindy manual
  Product Number	43308
  EAN	4002888433082
