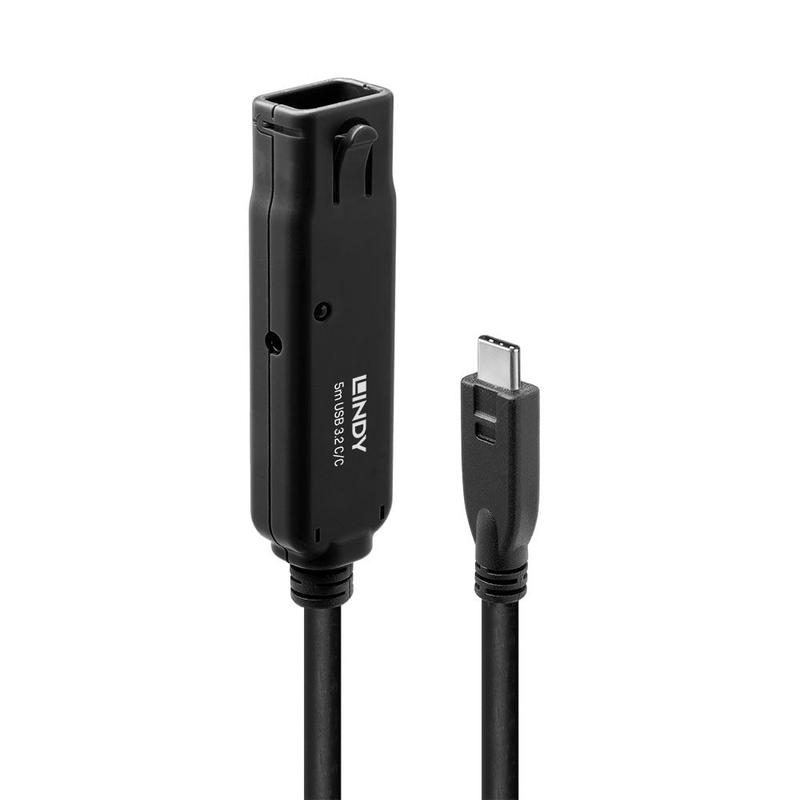

High-Speed 10Gbps USB-C Extension Lead
The Lindy USB 3.2 Gen 2 Active Extension Pro is a high-performance active cable that enables access to USB devices over long distances. It supports data transfer rates of up to 10Gbps and is perfect for transferring large amounts of data quickly and reliably.
This 5m USB 3.2 active extension can be cascaded up to a maximum distance of 15m.
It can be used if a USB device is to be connected at a greater distance, e.g. a permanently installed webcam in a meeting room, a multi-function hub with various interfaces or if repeated access to a device is difficult. The Lindy USB 3.2 Active Extension is compatible with computers with USB 3.2 Type C or Thunderbolt 3/4 ports, making it the perfect extension tool for newer notebooks, Macbooks and PCs with USB Type C ports.
The Lindy USB 3.2 Active Extension features a DC socket for connecting a power supply unit for the power supply. A USB power adapter cable is included in the scope of delivery, a USB power supply unit must be purchased separately.
These active extension cables with active, industrial-grade technology and sockets with hook mechanism ensure high and reliable signal quality even in demanding environments.
Please note that USB Power Delivery and DisplayPort Alternate Mode are not supported.
-
Connector A USB Type C Male Connector B USB Type C Female Power 2.5/0.7mm DC Connector Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Flash Dimensions USB C Male 14x41x11.2mm (0.55×1.61×0.44in) Dimensions USB C Female 22x82x16.1mm (0.86×3.23×0.63in) Length 5m (16.4ft) Standard USB 3.2 / 3.1 Gen 2 Colour Black Type Round Jacket Diameter 5mm +/- 0.15mm (0.22in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 26/26/24AWG Shielding AL Mylar and braid Supported Bandwidth 10Gbps Nominal Attenuation 0.064MHz – <0.08dB, 0.256MHz - <0.11dB, 0.512MHz - <0.13dB,
0.772MHz – <0.15dB, 1.0MHz - <0.20dB, 4MHz - <0.39dB,
8MHz – <0.57dB, 12MHz - <0.67dB, 24MHz - <0.95dB,
48MHz – <1.35dB, 96MHz - <1.90dB, 200MHz - <3.20dB, 400MHz - <5.80dBMinimum Bend Radius 60mm (2.36in) Maximum Tensile Load – Operating Temperature 0C – 50C (32F – 122F) Storage Temperature -20C – 75C (-4F – 167F) Transmission Medium Twisted Pair Transmission Technology USB 3.2 / 3.1 Gen 2 Packaging Type Carton Box Packaging Dimensions 170x160x50mm (6.7×6.3×1.97in) Net Weight 0.23g (0.51lb) Gross Weight 0.37kg (0.82lb) Warranty 2 Years Certificated CE, FCC, RoHS, REACH & California Proposition 65 Package Contents USB 3.2 Gen 2 C/C Active Extension Pro 5m, Power Adapter Cable Nr. 70265, Lindy Manual Product No. 43405 EAN 4002888434058 -
Description Downloads Product Safety Information Downloads
