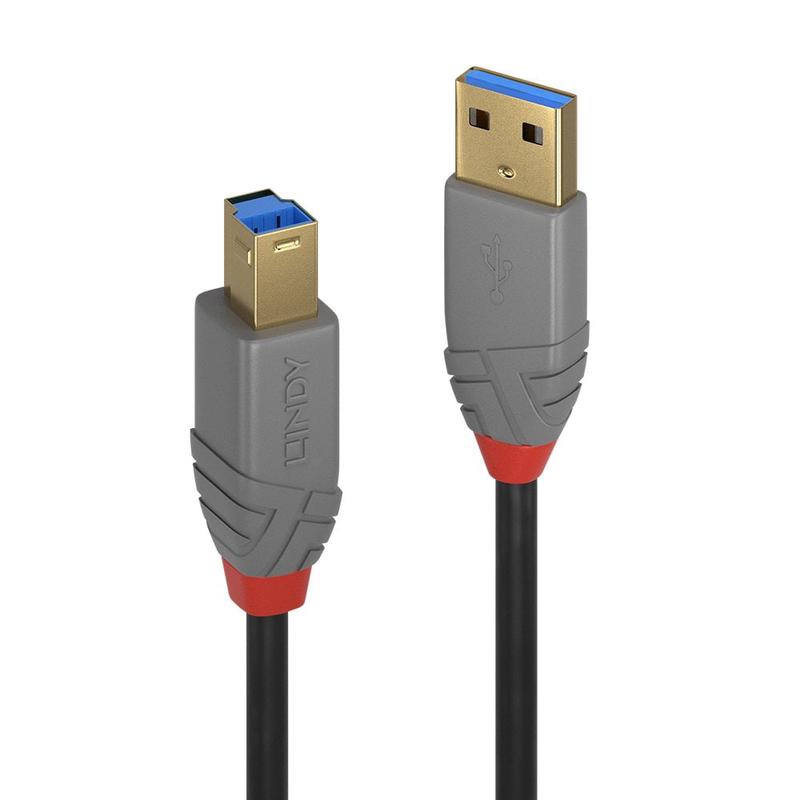

Professional 5m USB 3.2 Type A to B Cable for AV & IT Installations
The Anthra Line USB 3.2 Type A to B cables from Lindy’s Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.Information about USB generationsWe have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
-
Connector A USB 3.2 Type A Male Connector B USB 3.2 Type B Male Housing Material PVC Connector Plating Gold Plated Pin Construction Copper Pin Plating Gold Plated USB A Dimensions 12.0×4.5x36mm (0.47×0.18×1.42in) USB B Dimensions 6.6×7.3×34.4mm (0.26×0.29×1.35in) Length 5m (16.40ft) Standard USB 3.2 Gen 1 Colour Black Type Round Jacket Diameter 5.5mm (0.22in) Jacket Material PVC Conductor Material Tinned Copper Shielding Aluminium Magnesium Braid 85% Gauge Power 24AWG Gauge Data 28AWG Supported Bandwidth 5Gbps Max Resolution – Nominal Attenuation 0.5-5m: 0.5MHz-7.5GHz <25DB Min Bend Radius 48mm (1.89in) Operating Temp 0C – 60C (32F – 140F) Storage Temp 0C – 60C (32F – 140F) Packaging Type Polybag Warranty 10 Years Certifications RoHS, REACH, UL Product No. 36744 EAN 4002888367448 Available Lengths 0.5m, 1m, 2m, 3m, 5m -
