Description

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

An easy to use, open-source, modular mini IoT development kit, with sensor and speaker HATs.

Powered by an ESP32 based processor with inbuilt Bluetooth and wifi, M5StickC also includes a motion sensor, an IR transmitter, a microphone and a built-in lipo battery.

ENV HAT is able to measure temperature, humidity, air pressure and magnetic fields. It connects via I2C so allows you to obtain 4 types of environmental data using just 2 pins, making it ideal for environmental data collecting.

SPK HAT is an M5StickC compatible speaker with integrated single-channel 3w amplifier.

This kit also comes with a watch strap mount – ideal for making your projects wearable!

For more information and for help getting started, click here

Product Features

• ESP32-based
• Built-in 6-Axis IMU
• Red LED
• IR transmitter
• Microphone
• Buttons, LCD(0.96 inch)
• Built-in Lipo Battery
• Extendable Socket
• Wearable & Wall mounted
• Development Platform UIFlow, MicroPython, Arduino

ENV HAT

• temperature range: -20 ~ 60C

• Humidity range: 20 ~ 95 %RH

• Air pressure range: 300 ~ 1100hPa

• Typical Magnetic Field

  • 1300Txy-axis2500Tz-axis
  • magnetic field resolution: 0.3T

• Dimension24mm x 20.3mm x 13.8mm

• Weight3g

SPK HAT

• Ultra-low EMI interference, 20dB better than FCC class B standard at 300MHz
• Voltage 5 v power supply, with 4 load power output 3 w, 10% of the total harmonic distortion.
• Ultra-low noise without input
• Power range: 2.8V5.5V
• Shortcut protection.

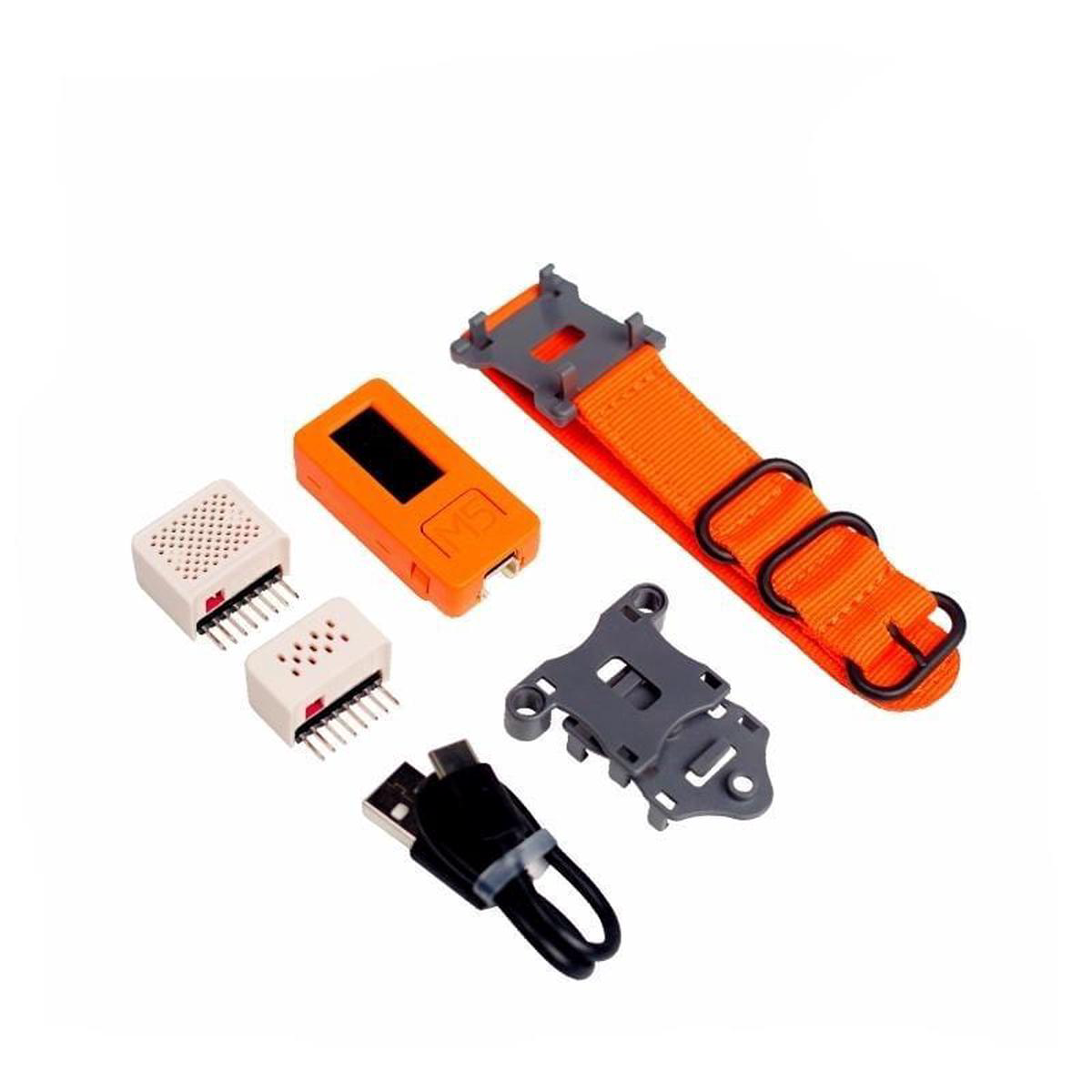

Include

• 1x M5Stick-C
• 1x 20cm USB Type-C cable
• 1x ENV Hat
• 1x SPK Hat
• 1x WALL/1515
• 1x Brick
• 1x watch strap

Applications

• Internet of things terminal controller
• Wearable devices
• Stem education product
• DIY creation
• Weather Station
• Compass
• MP4/MP3
