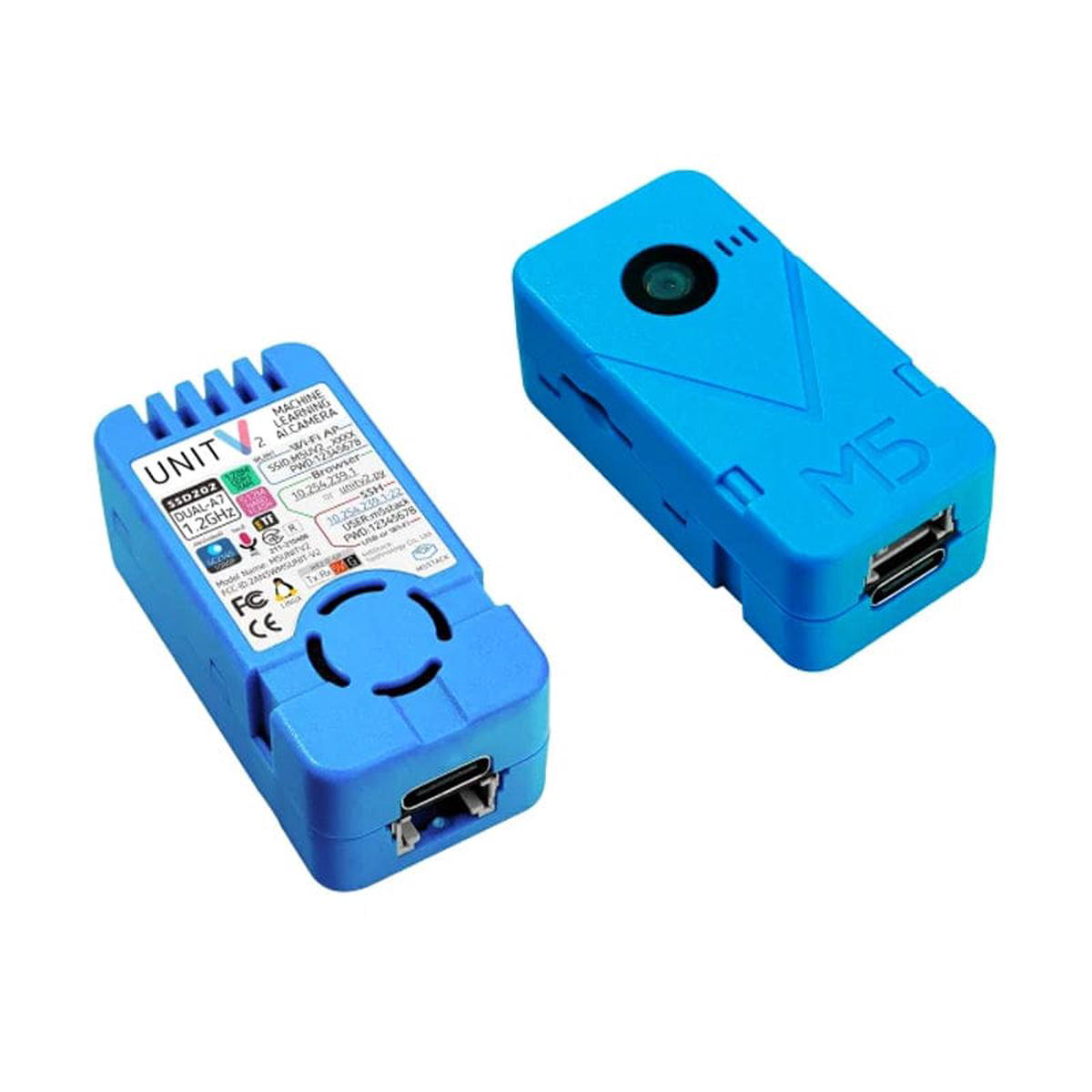

M5Stack UnitV2 8211 Standalone AI Camera for Edge Computing (SSD202D) TinyML

Description

The UnitV2 is a high-efficiency AI recognition module launched by M5Stack, using Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2Ghz processor) control core, integrated 128MB-DDR3 memory, 512MB NAND Flash, and 1080P camera. With its embedded Linux operating system and rich software and hardware resources and development tools integrated, UnitV2 is committed to bringing users a simple and efficient AI development experience out of the box. Features Sigmstar SSD202D Dual Cortex-A7 1.2Ghz Processor 128MB DDR3 512MB NAND Flash GC2145 1080P Colored Sensor Microphone WiFi 2.4GHz Package Contents 1 x M5Stack UnitV2 1 x 16g TF Card 1 x USB-C Cabel (50cm) 1 x Stand 1 x Back Brick Applications AI recognition function development Industrial visual identification sorting Machine vision learning Specification Resources Parameter Sigmstar SSD202D Dual Cortex-A7 1.2Ghz Processor Flash 512MB NAND RAM 128MB-DDR3 Camera GC2145 1080P Colored Sensor Lens FOV 68 , DOF= 60cm- Power Input 5V @ 500mA Peripherals TypeC x1, UART x1, TFCard x1, Button x1, Microphone x1, Fan x1 Indicator light Red, White WiFi 150Mbps 2.4GHz 802.11 b/g/n Operating Temperature 0C to 60C Net weight 18g Gross weight 62g Product Size 48*18.5*24mm Package Size 157*38*38mm Case Material Plastic ( PC ) Resources Documentation available here
