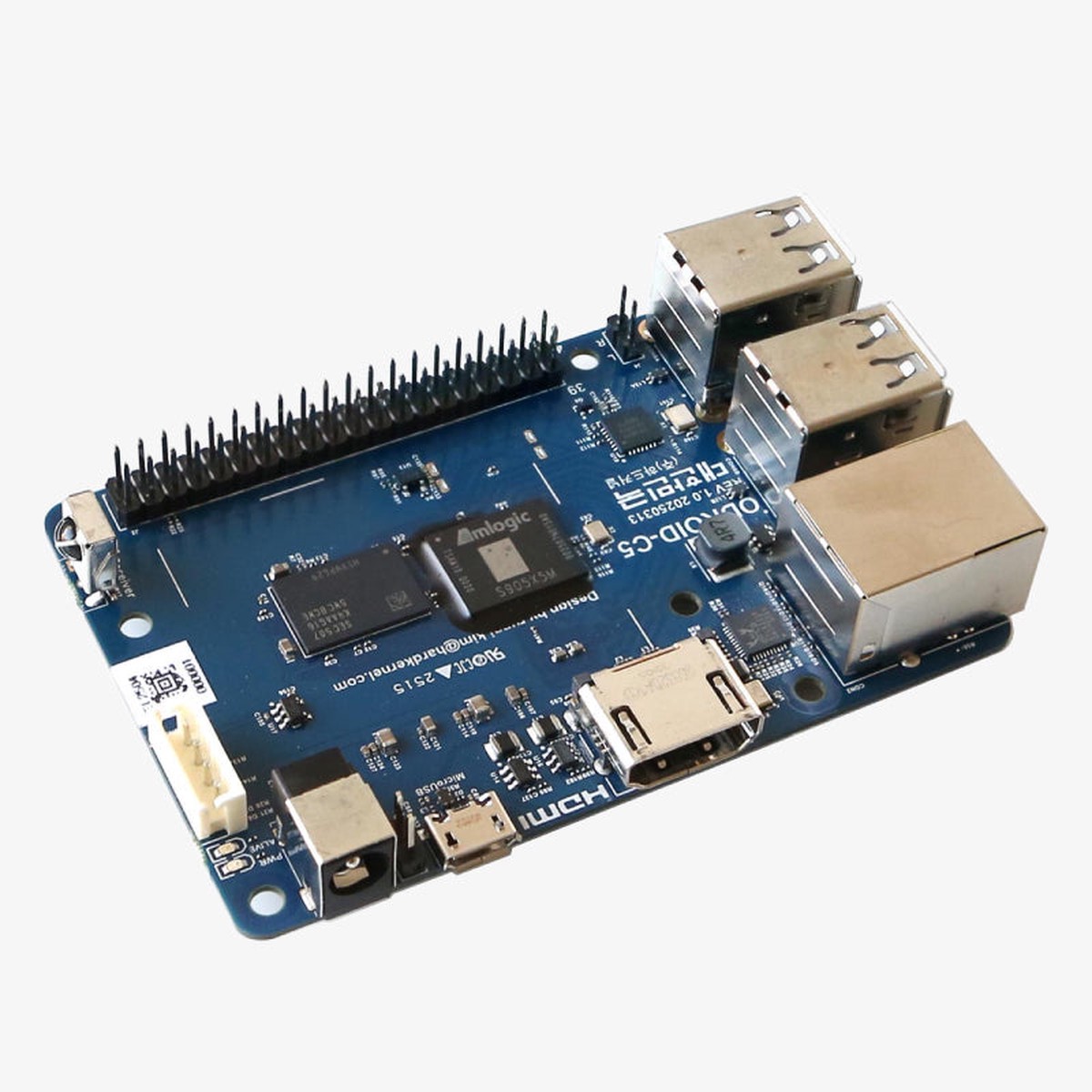

ODROID-C5 with DDR4 4GByte RAM

Description

ODROID-C5 with DDR4 4GByte RAM is a compact and powerful single-board computer powered by the Amlogic S905X5M processor. Featuring a Quad-Core Cortex-A55 CPU, ARM G310 V2 GPU, high-speed DDR4 memory, and Gigabit Ethernet connectivity, it is ideal for media centers, Linux development, embedded systems, networking applications, and edge computing projects.

ODROID-C5 with DDR4 4GByte RAM Datasheet

Features:

1. Amlogic S905X5M Quad-Core Processor
2. Quad-Core Cortex-A55 up to 2.5GHz
3. ARM G310 V2 GPU at 850MHz
4. 4GB DDR4 High-Speed Memory
5. High-Speed eMMC HS400 Support
6. Gigabit Ethernet Connectivity
7. HDMI 2.0 with 4K@60Hz Support
8. 40-Pin GPIO Expansion Header
9. Low Power Consumption Design
10. Compact Form Factor

Board Details:

• A CPU (Amlogic S905X5M): Quad-Core Cortex-A55 Processor running up to 2.5GHz
• B DDR4 Memory: 4GB High-Speed DDR4 RAM
• C USB 2.0 Host Ports: 4 USB 2.0 interfaces for peripherals and accessories
• D RJ45 Ethernet Port: Gigabit Ethernet connectivity (10/100/1000 Mbps)
• E HDMI 2.0 Port: Display output supporting up to 4K@60Hz resolution
• F Micro USB 2.0 OTG Port: USB device and host mode interface
• G DC Power Jack: Main power input connector (5.5mm outer, 2.1mm inner diameter)
• H System LED Indicators: Power and system activity status indicators
• I UART Console Port: Serial communication and system debugging interface
• J IR Receiver: Infrared remote control input
• K 40-Pin GPIO Header: Expansion interface for sensors, modules, and peripherals
• L Stereo Audio Output: 2-pin analog audio output connection
• M eMMC Module Socket: High-speed HS400 eMMC storage interface
• N Micro SD Slot: Expandable storage support via microSD card
• O Alternative Power Input: 2-pin auxiliary power connector for board power supply

Specifications:

Parameter	Value
Brand	Hardkernel
Model	ODROID-C5
Product Type	Single Board Computer
Processor	Amlogic S905X5M
CPU	Quad-Core ARM Cortex-A55
CPU Frequency	Up to 2.5GHz
GPU	ARM G310 V2
GPU Frequency	850MHz
RAM	4GB DDR4
Memory Bus Width	32-bit
Memory Data Rate	3200 MT/s
Storage Support	MicroSD Card, eMMC Module
eMMC Interface	HS400
MicroSD Support	UHS-I SDR104
Ethernet	Gigabit RJ45 (10/100/1000 Mbps)
USB Host Ports	4 USB 2.0
USB OTG	1 Micro USB OTG
Video Output	HDMI 2.0 up to 4K@60Hz
Audio Output	HDMI Digital Audio, Analog Stereo Line-Out
GPIO Header	40-Pin
UART Console	921600bps Debug Serial Console
GPIO Logic Level	3.1V
Maximum GPIO Input Voltage	3.4V
Power Input Voltage	7.5V 15.5V DC
Recommended Power Supply	12V / 2A
Idle Power Consumption	1W
CPU Stress Power Consumption	2.5W
Power Off Consumption	0.22W
Dimensions	85 56 22 mm
Weight	42 g

Also Check This Products:-

ODROID-N2+ with 4GByte RAM

ODROID-M1S with 4GByte RAM with US plug

ODROID-N2+ with 2GByte RAM

Package Includes:

1 x ODROID-C5 with DDR4 4GByte RAM
