Description

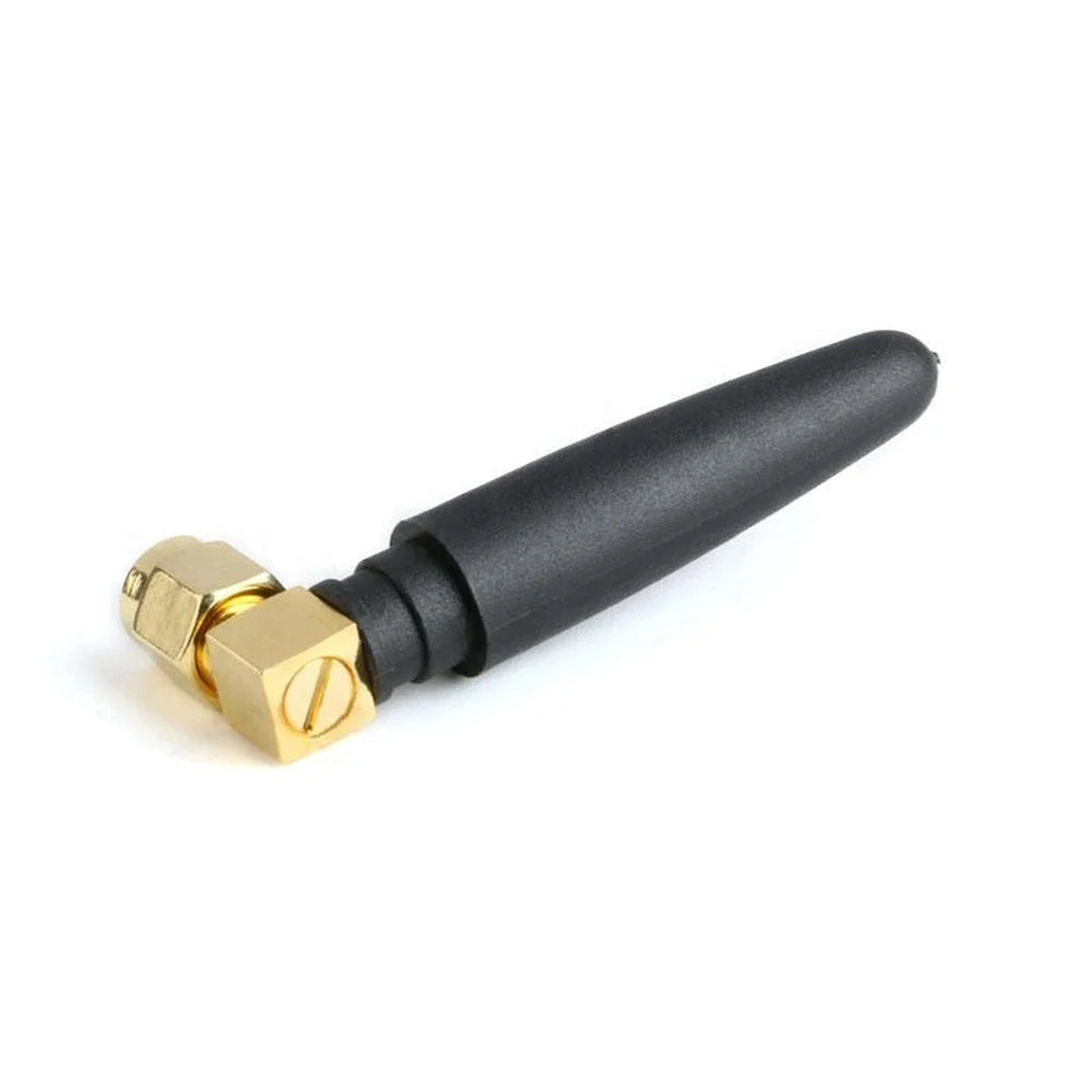

It’s a Rubber Duct GSM External Antenna with a height of 5 cm (2 inches). The antenna is relatively small and can be easily connected to the SMA connector. The antenna has a gain of 2 dBi.
This GSM External Antenna is wire-free, resulting in a durable and trouble-free design. It can be used with the following frequencies: 800-900/1800-1900/2010-2025. It also works with 2G and 3G devices, such as GSM, CDMA, WCDMA, EVDO, and TD.
Applications
- Wi-Fi /WLAN /MIMO /Bluetooth System
- Router
- IEEE802.11b/g/nWLAN System
- Wireless Communication System
Specification
| Connector Type | SMA Male |
| Frequency | 824MHz~960MHz 1710MHz~1990MHz |
| Impedance | 50 |
| Peak Gain | 3.0dBi |
| Return Loss | >=10dB |
| Material | ABS and Metal |
| Operating Temp. | -40C to 65C |
