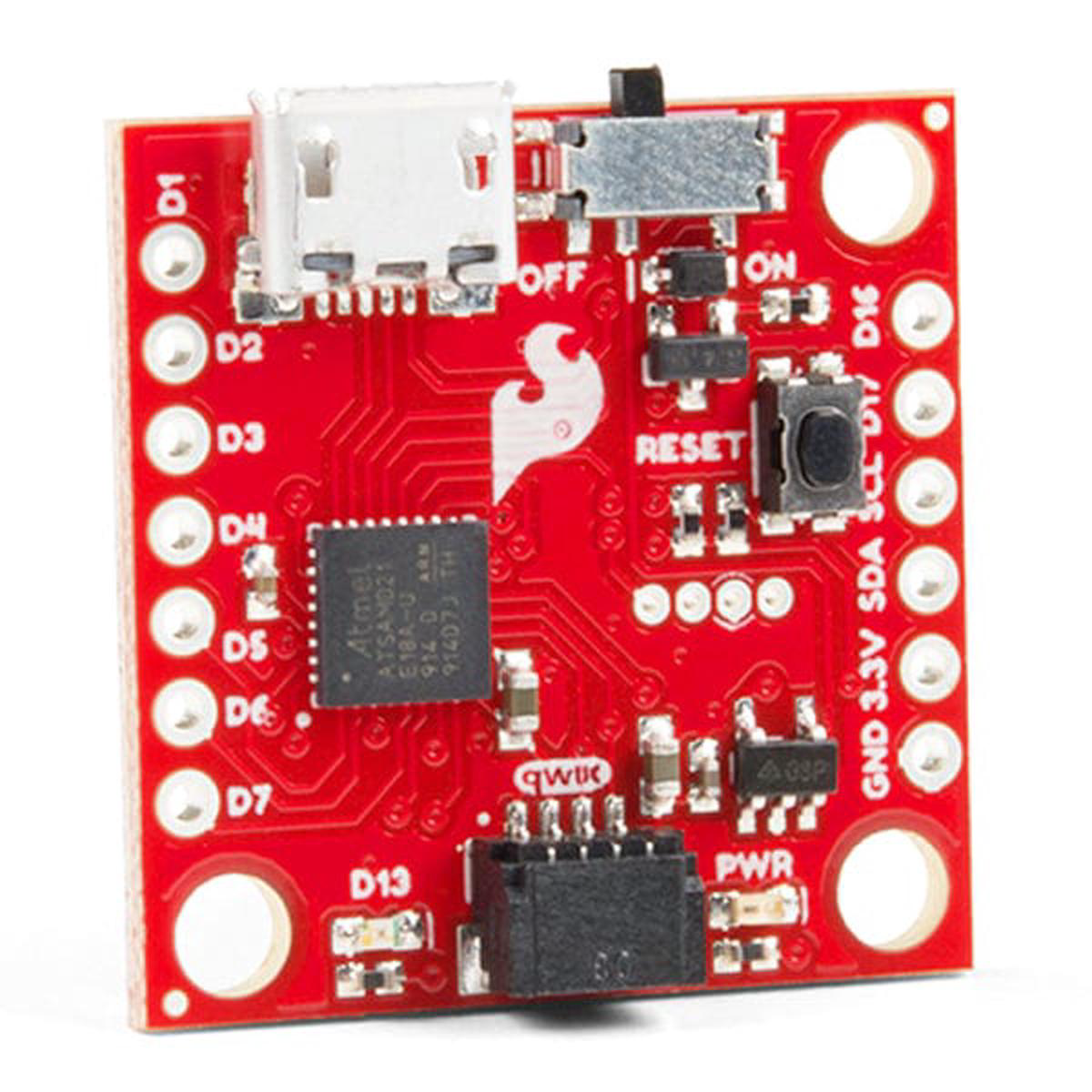

SparkFun Qwiic Micro 8211 SAMD21 Development Board

Description

Looking for a super small microcontroller to use with the Qwiic eco-system? The SparkFun Qwiic Micro is moulded to fit our standard 1\”x1\” Qwiic standard size which makes it one of our smallest micro-controller offerings to date. At it\’s core is the powerful and versatile ATSAMD21E18, which is an ARM Cortex M0+, 32-bit microcontroller, with 256KB of flash memory that can run at up to 48MHz! It has 12 digital pins which include 5 analogue pins, SPI, IC, and an additional UART data bus as well as a Qwiic connector for easy integration into the Qwiic ecosystem and IC prototyping. On the underside of the Qwiic Micro, we\’ve left open pads for a LiPo Battery connector that you can add yourself if you wish you can make the micro-controller portable. We\’ve also provided pads on the underside for a flash memory chip to maximize the board\’s memory capacity. The SparkFun Qwiic Micro comes programmed with a UF2 Bootloader making it easy to program with easy driver installation! If you need a tiny but mighty micro-controller for your next project check out the SparkFun Qwiic Micro. Get Started with the Sparkfun Qwiic Micro Guide Features Dimensions: 1in x 1in Optional LiPo Charging Port Expandable Flash Memory Qwiic Connector ATSAMD21E 48 MHz 256KB 32K SRAM UF2 Bootloader Resources Schematic Eagle Files Board Dimensions Datasheet (SAMD21E) Graphical Datasheet Hookup Guide UF2 Bootloader Qwiic Info Page GitHub Hardware Repo Arduino Board Definitions Circuit Python Firmware SAMD Windows 7 Installer
