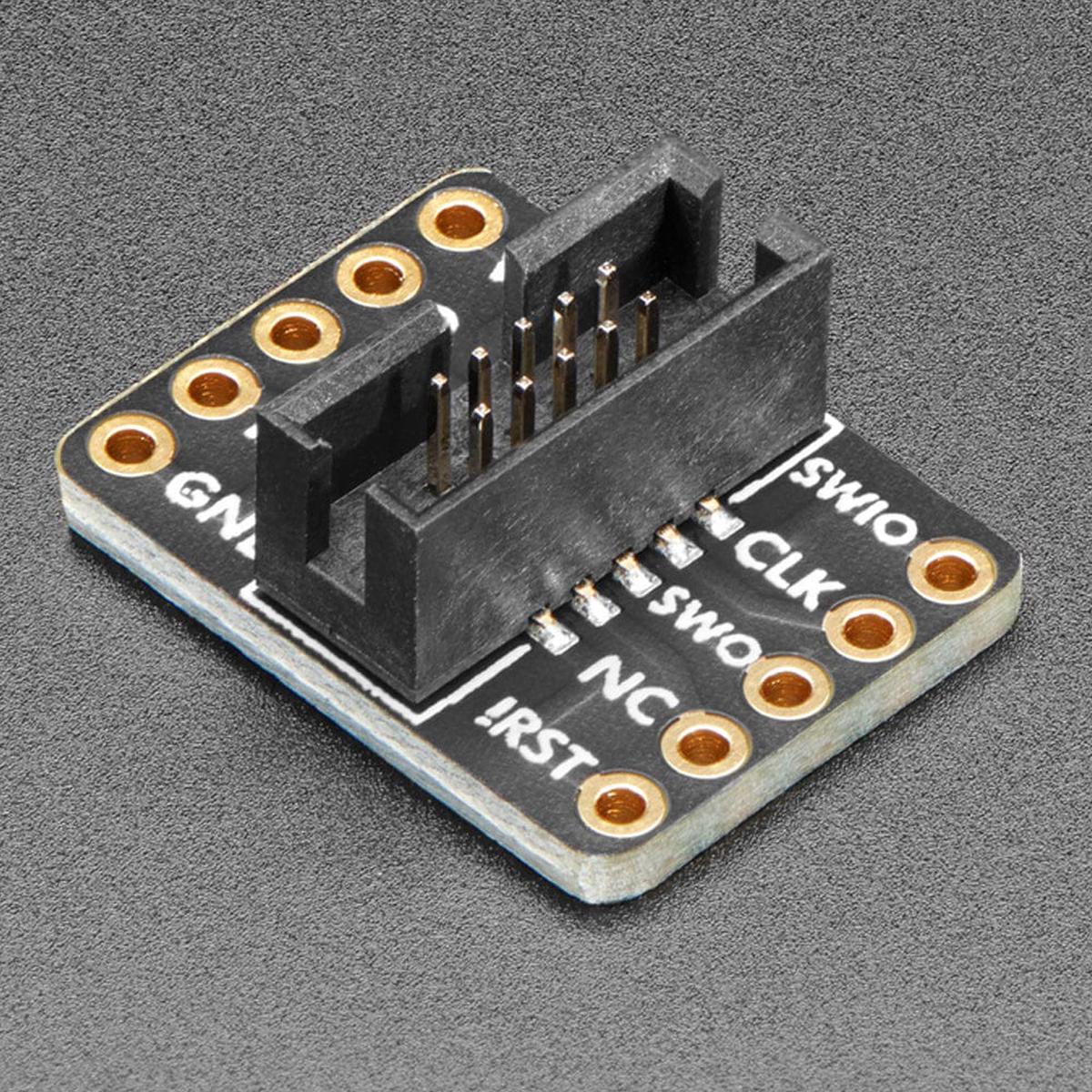

SWD Cable Breakout Board

Description

This Adafruit SWD adapter board helps you connect JTAG/SWD tools like JTAGulator, STLink or SEGGER J-Link to ARM boards using a 25 1.27mm (0.05″) 10-pin SWD connector. No cables included board and header only.

This Adafruit adapter board makes it much easier to program and debug ARM development boards that use the slimmer 25 SWD connector with 0.05″ / 1.27mm pitch. Its especially handy when working with tools like the JTAGulator, STLink, or SEGGER J-Link, and small boards that use the standard 10-pin SWD programming header, often found on Cortex-M0 and Cortex-M3 designs.

Please note: this board does not include any cables or a breadboard. Its supplied as the adapter board itself, with header included if you need it, and is a useful add-on for anyone doing JTAG/SWD programming or debugging.

Specifications

• 14mm x 18mm x 7mm
• Weight: 1g

Revision History

• As of October 2022 we’ve updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen – you may get the new PCB or the older version with vector fonts – both are identical other than the fancy silkscreen.

Resources

• EagleCAD files on GitHub
• Fritzing library

Package Contents

• 1x SWD (2×5 1.27mm) Cable Breakout Board
• 1x 9-pin header
