Description

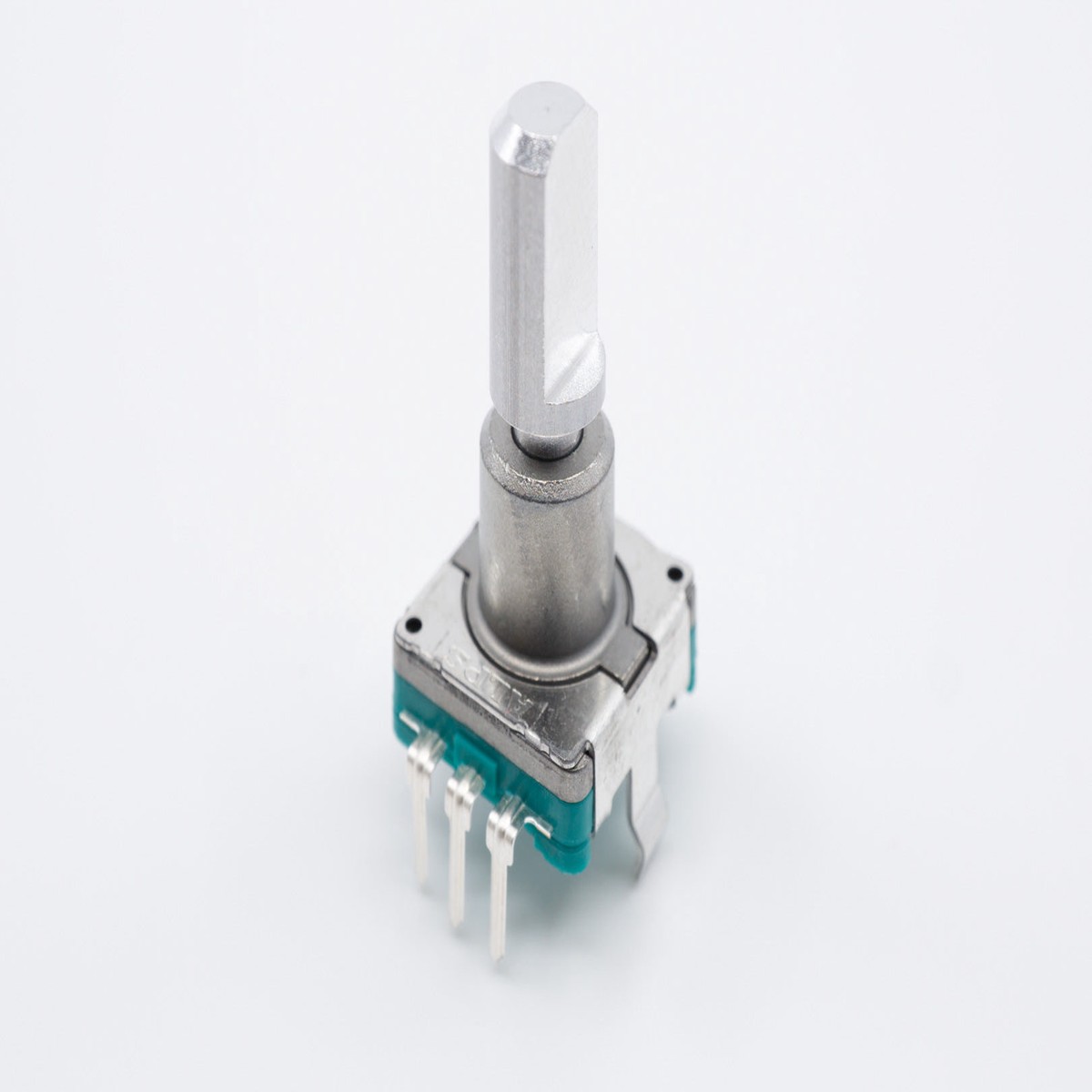

An original EC11 encoder by ALPS. Designed to deal with harsh environments, it requires more force to operate giving it very tactile feedback.You’ll never miss an actuation when you turn the encoder knob.
This encoder actuates thirty times on a full cycle, so onefulltwist will perform thirty actions.
The encoder also acts as a button, which you can assign in your keymap. The actuation force required is roughly 500 grams, so the button is best used for non-frequent actions.
Specifications
- Operating force: 400gF
- Button travel: 1,5mm
- Detents: 36
- Rated for: 15.000 cycles, 20.000 button presses.
- Part number:EC11E18244A5
The resolution of this encoder in QMK is 4, which is the default. You don’t need to change the resolution for it to work properly.
Additional notes
Multiple encoder types can be used on the same keyboard. The Kyria supports one encoder per half. You can set a specific resolution per encoder infirmware, allowing you to use both anLinearRotary Encoderand this encoder together.
