Description
KBDfans Tofu Family

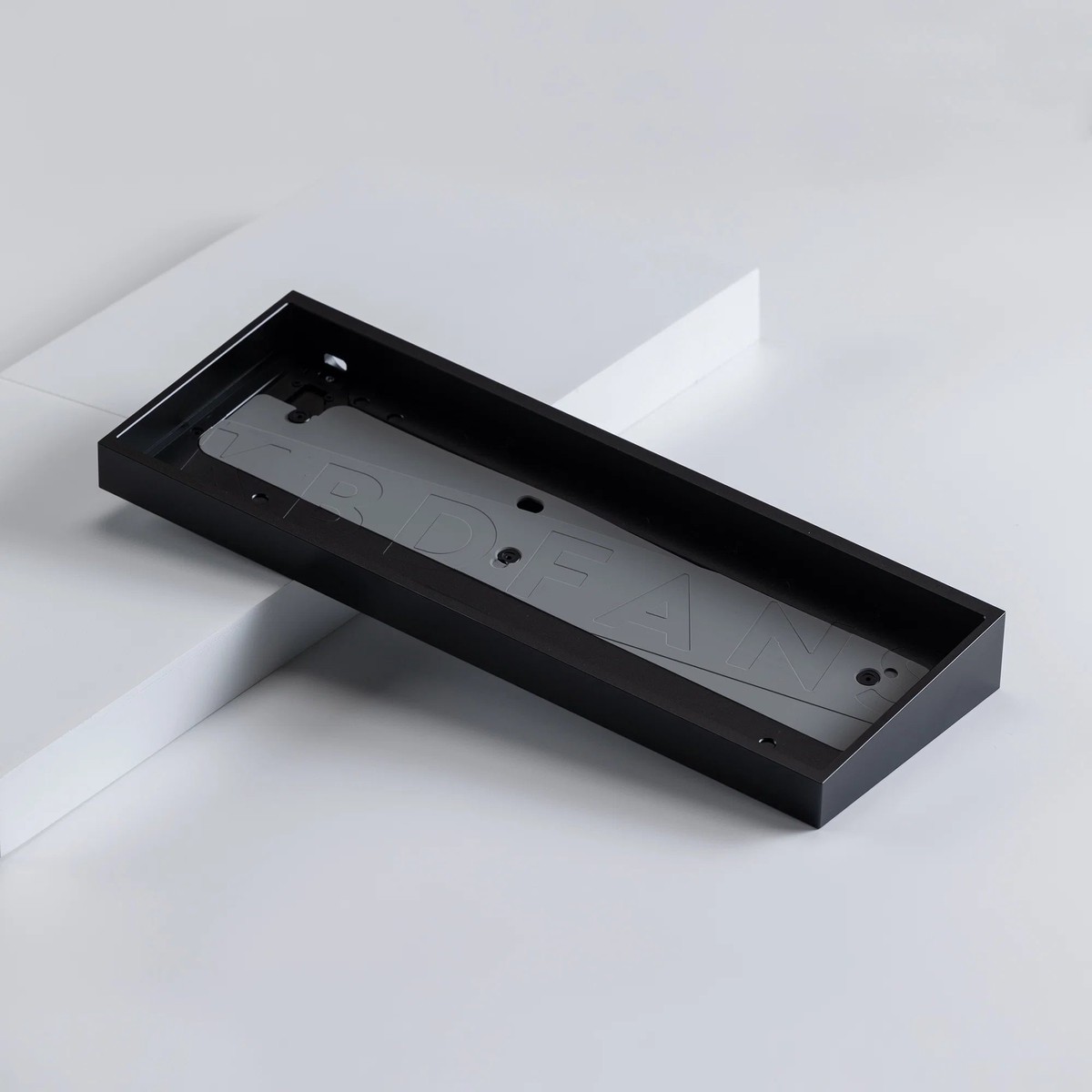

Tofu60 Redux V2 Magnetic Switch & GH60 Ready
Staying true to the iconic, minimalist design language of the TOFU family, the V2 introduces a comprehensive structural upgrade, building upon the foundation of V1. Slim bezels, an adjustable USB port, three mounting styles, and native support for Hall Effect Switch PCBs alongside standard GH60 boards.
V1 V2
The difference.
Foot weight, switch stability, mounting styles, USB connectivity, case bottom, feet and sound reworked point by point over V1.
Adjustable USB
Pioneering adjustable USB port.
Inherits and refines the adjustable USB port design from V1, ensuring the USB port of various third-party PCBs aligns perfectly in the center.
Daughterboard
Daughterboard support.
Newly added mounting holes compatible with Rakka Atlas, Venom60 HE and similar daughterboard PCBs, for advanced DIY enthusiasts.
Exploded view
Every layer in the stack.
Case, 1.5 mm Poron case foam, 0.05 mm PET foam, 37 g silicone filling and a 243 g brass weight bar at 2.4 mm thickness.
PCB compatibility
Standard GH60 PCBs and Magnetic Switch boards.
Supports standard GH60 layout PCBs and the Magnetic Switch (HE) PCB ecosystem Wooting 60HE V1/V2, Rakka, Venom60 HE, Tofix, H60 and similar Hall Effect Switch boards.
Case features
Every detail, up close.
The V2 generation retains the Tofu series’ signature minimalist design while completely reimagining its texture, feel and aesthetics.
Dimensions
Size & weight.
| Size | 294.8 112.26 32.82 19.7 mm |
| Typing angle | 7 |
| Effective front height | 23.6 mm |
| Silicone filling | 37 g |
| Brass weight bar | 243 g 2.4 mm |
| Aluminum case weight | 740 g |
| Acrylic case weight | 311 g |
Mounting styles
Tray, OG and O-ring.
The custom-molded CSR (Custom Silicone Ring) suspends the assembly with no screws at all a friction-fitted build with a softer typing feel, easier disassembly and no metallic ping. Everything needed for all three mounts is included in the box.
Tray Mount
Universal 60%
PCB and plate secured via 5 detachable brass standoffs. Mini Silicone Gaskets are essential for optimal acoustics.
Mini Gasket 8 Brass standoff 5
OG Mount
O-ring + Gasket
Screwless, suspended build that eliminates metallic ping. Enhanced acoustics, premium typing feel, simplified disassembly.
Wooting 60HE GH60 Tofix
CSR 1 Mini Gasket 8
O-ring Mount
Friction-fitted
Softer typing feel with a screwless, friction-fitted design. Custom-molded silicone compatible with screw-in stabilizers.
Venom60 HE Rakka V2 H60
CSR 1 Mid Gasket 8
OG and O-ring mounts (using CSR) only support the ANSI 61 layout. They do not natively support 63 or left-shift 64 layouts unless you manually trim the silicone ring.
Packing list
In the box.
- Case 1
- Silicone Filling 1
- CSR Silicone Ring 1
- Mini Silicone Gasket 8
- Mid Silicone Gasket 8
- 1.5 mm Poron Case Foam 1
- 0.05 mm PET Foam 1
- Brass Standoffs 5
- Rubber Feet 4
- T6 Screwdriver 1
- Barebone Hook 1
Case only PCB, plate, switches, keycaps and stabilizers are not included.
Specifications
Spec sheet.
| Product | Tofu60 Redux V2 keyboard case (60% / GH60) |
| PCB compatibility | Standard GH60 layout PCBs Magnetic Switch / Hall Effect Switch (HE) PCBs Wooting 60HE V1/V2, Rakka, Venom60 HE, Tofix, H60 |
| Mounting styles | Tray OG (O-ring + gasket) O-ring |
| Layout note | CSR-based OG and O-ring mounts support ANSI 61 only |
| USB port | Adjustable, centres third-party PCB ports |
| Daughterboard | Mounting holes for Rakka Atlas, Venom60 HE and similar |
| Size | 294.8 112.26 32.82 19.7 mm |
| Typing angle | 7 |
| Effective front height | 23.6 mm |
| Silicone filling | 37 g |
| Brass weight bar | 243 g 2.4 mm thick |
| Aluminum case weight | 740 g |
| Acrylic case weight | 311 g |
| Finishes | Anodized E-coating Acrylic RAW |
FAQ
Common questions.
Does it support magnetic switch (Hall Effect) PCBs?Yes. It’s compatible with both HE PCBs and MX PCBs including Wooting 60HE V1/V2, Rakka, Venom60 HE and other magnetic keyboard boards, alongside standard GH60 layout PCBs.Which mounting style should I pick?Tray Mount is universal and works with essentially any 60% PCB use the Mini Silicone Gaskets for optimal acoustics. OG Mount (CSR + Mini Gaskets) gives a screwless suspended build with no metallic ping. O-ring Mount (CSR + Mid Gaskets) is the softest of the three. All parts for all three are in the box.Can I use a 63 or left-shift 64 layout?Tray Mount is unaffected. OG and O-ring mounts use the CSR silicone ring, which natively supports the ANSI 61 layout only 63 and left-shift 64 layouts require manually trimming the ring.Does it work with screw-in stabilizers?Yes. The CSR is custom-molded to be compatible with screw-in stabilizers.How do I install and remove the assembly?Tilt the USB side of the build into the housing first, then gently press the bottom into place. To remove, use the provided puller tool at the spacebar location to hook and lift the internal assembly out of the case. This warranty does not cover damage resulting from improper operation or failure to follow the installation guidelines.What counts as an acceptable finish?On standard finishes, all six external surfaces should be free from machining marks, stains, dents and pinholes, with no black dots larger than 1 mm or scratches longer than 1 mm. Minor blemishes around screw holes, uneven internal coating, anodizing hooks and internal tool marks are reasonable manufacturing artifacts. RAW products are not sold as “flawless” minor scratches, tool paths, small specks and surface reflection variation are inherent to that process.
